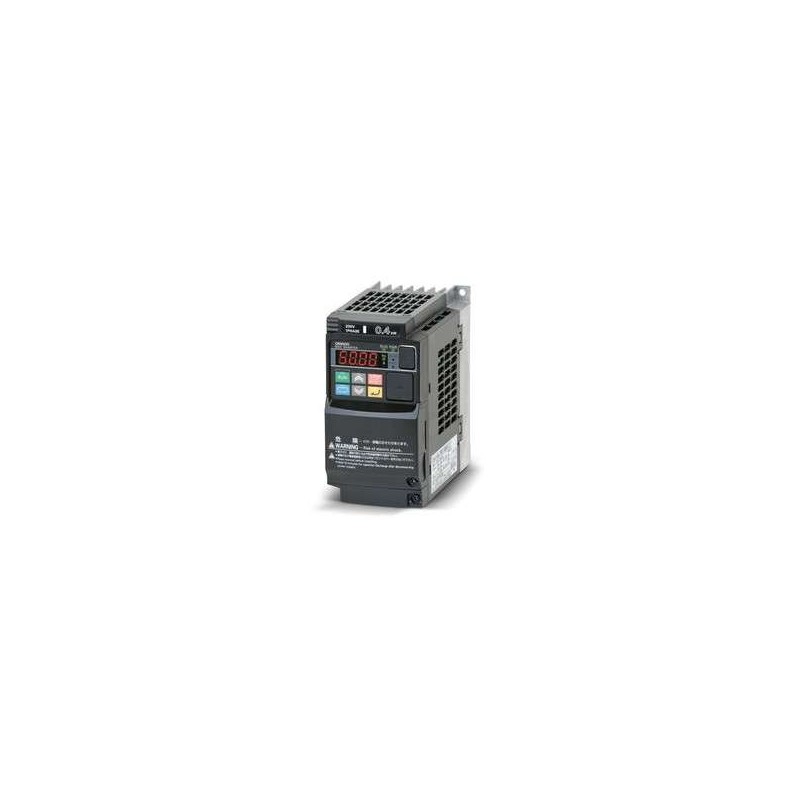

Omron 3G3MX2-A4007-E AC Drive

Series#: Omron

Product Details

Model: 3G3MX2-A4007-E OMRON – A high-performance compact general-purpose inverter for 3-phase 400V AC motor control.
Rated for 0.75 kW (1 HP) output with a robust 2.0 A rated current, ideal for small to medium industrial loads.
Built-in advanced sensorless vector control for precise torque and speed regulation across a wide frequency range (0.1 to 400 Hz).
Integrated EMC filter and built-in braking transistor for reliable operation in noisy environments and quick deceleration.
Compact, panel-mount design with easy-to-use digital keypad and RS-485 Modbus communication for seamless system integration.
Wide operating temperature range (-10°C to +50°C) and conformal-coated boards for enhanced durability in harsh conditions.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The OMRON 3G3MX2-A4007-E is a versatile and reliable AC drive engineered for precise motor control in industrial automation applications. This 0.75 kW, 3-phase 400V input model delivers exceptional performance with sensorless vector control, enabling stable torque down to zero speed and accurate speed regulation across a broad frequency range. Its compact footprint saves panel space, while the built-in EMC filter, braking transistor, and RS-485 Modbus interface simplify installation and reduce external component costs. Designed for longevity, the 3G3MX2-A4007-E includes conformal coating on PCBs for resistance to moisture and dust, making it suitable for demanding environments such as conveyors, fans, pumps, and packaging machinery.

Parameter	Specification
Model Number	3G3MX2-A4007-E
Input Phase & Voltage	3-Phase, 380 to 480 V AC (±10%), 50/60 Hz (±5%)
Output Power (Rated)	0.75 kW (1 HP)
Rated Output Current	2.0 A
Control Method	Sensorless Vector Control, V/f Control, Torque Control
Frequency Range	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds, 200% for 3 seconds (at constant torque)
Built-in EMC Filter	Yes, Class A (for industrial environments)
Braking Capability	Built-in braking transistor; external resistor optional
Communication Interface	RS-485 Modbus RTU (standard)
Digital Inputs	6 programmable (NPN/PNP selectable)
Digital Outputs	2 programmable (open collector) + 1 relay output
Analog Inputs	2 (0-10 V DC / 4-20 mA selectable)
Analog Outputs	1 (0-10 V DC / 4-20 mA selectable)
Keypad	Built-in digital keypad with LED display
Protection Features	Overcurrent, overvoltage, undervoltage, overtemperature, phase loss, motor overload (electronic thermal)
Ambient Temperature	-10°C to +50°C (derating above 40°C)
Ambient Humidity	20% to 90% RH (non-condensing)
Enclosure Rating	IP20 (open type)
Cooling Method	Forced air cooling with built-in fan
Dimensions (W x H x D)	68 x 128 x 105 mm (approx.)
Weight	Approx. 0.7 kg
Compliance	CE, UL, cUL, RoHS
Warranty	Standard 12 months from date of shipment
