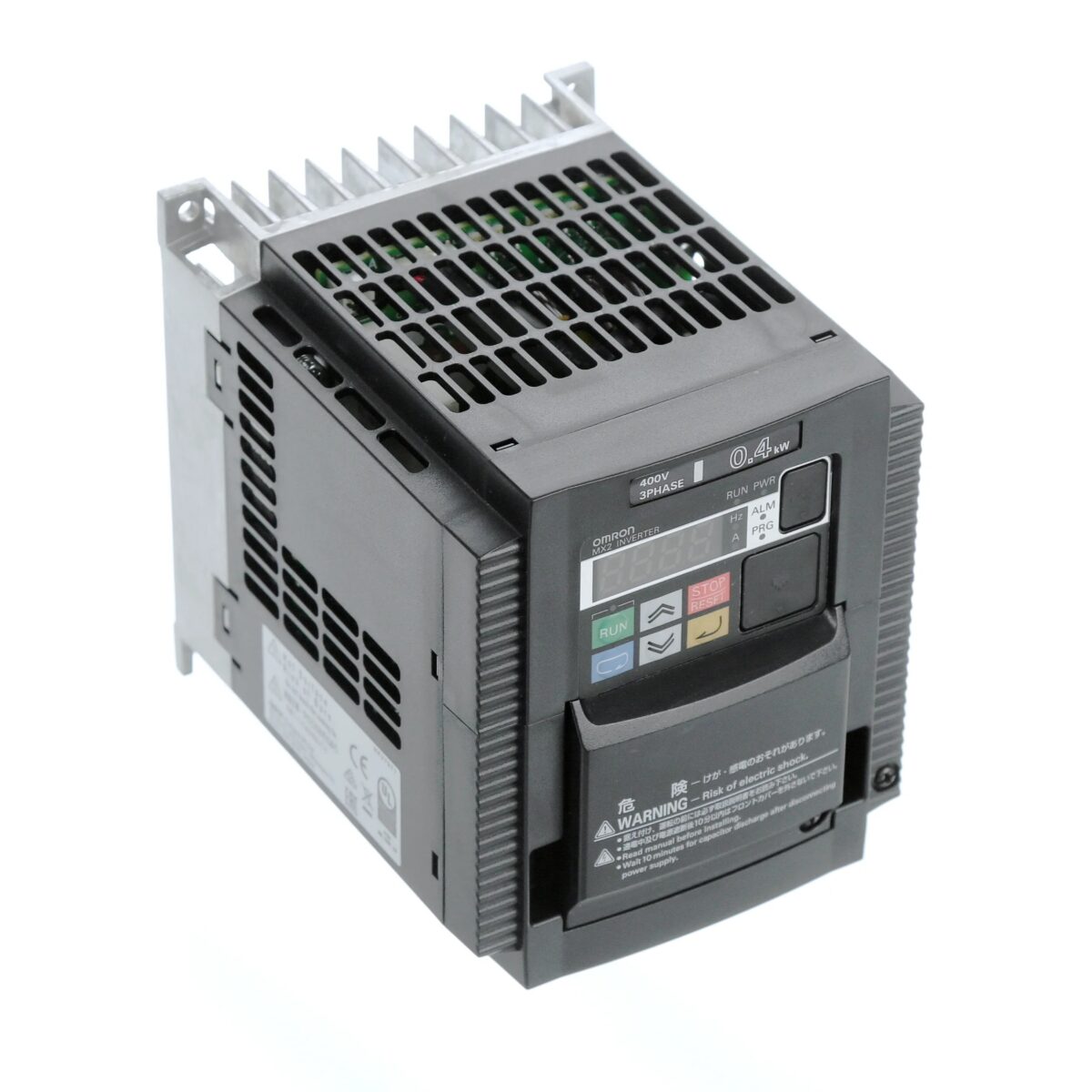

The 3G3MX2-A4004-V1 OMRON is a versatile and reliable variable frequency drive engineered for precise motor speed and torque control in demanding industrial environments. As part of the MX2 series, this inverter combines advanced sensorless vector control with user-friendly programming, making it suitable for applications like conveyors, pumps, fans, and small machinery. Its compact footprint and integrated EMC filter simplify panel integration, while the built-in PID and Modbus support enable seamless system automation. Every unit is shipped as 100% Original and New, ensuring long-term performance and compatibility with OMRON PLCs and HMIs.
| Parameter |
Specification |
| Model |
3G3MX2-A4004-V1 |
| Power Rating |
0.4 kW (0.5 HP) |
| Input Voltage |
3-phase, 380–480 VAC ±10%, 50/60 Hz |
| Output Voltage |
3-phase, 0–100% of input voltage |
| Rated Output Current |
1.2 A |
| Control Method |
V/f, Sensorless Vector Control, and V/f with PG |
| Frequency Range |
0.01–400 Hz |
| Overload Capacity |
150% for 60 seconds, 200% for 0.5 seconds |
| Protection Features |
Overvoltage, undervoltage, overcurrent, overtemperature, phase loss, short circuit |
| Communication |
Modbus RTU (RS-485) standard, optional fieldbus modules |
| Built-in Functions |
PID control, multi-step speed, jog operation, torque boost, auto-tuning |
| Ambient Temperature |
-10°C to +50°C (14°F to 122°F), derating above 40°C |
| Relative Humidity |
20% to 90% (non-condensing) |
| Enclosure Rating |
IP20 (NEMA 1) |
| Dimensions (W x H x D) |
68 mm x 128 mm x 110 mm (approx.) |
| Weight |
Approx. 0.6 kg (1.3 lbs) |
| EMC Compliance |
Integrated EMC filter for Class A (industrial) environments |
| Certifications |
CE, UL, cUL, RoHS |
