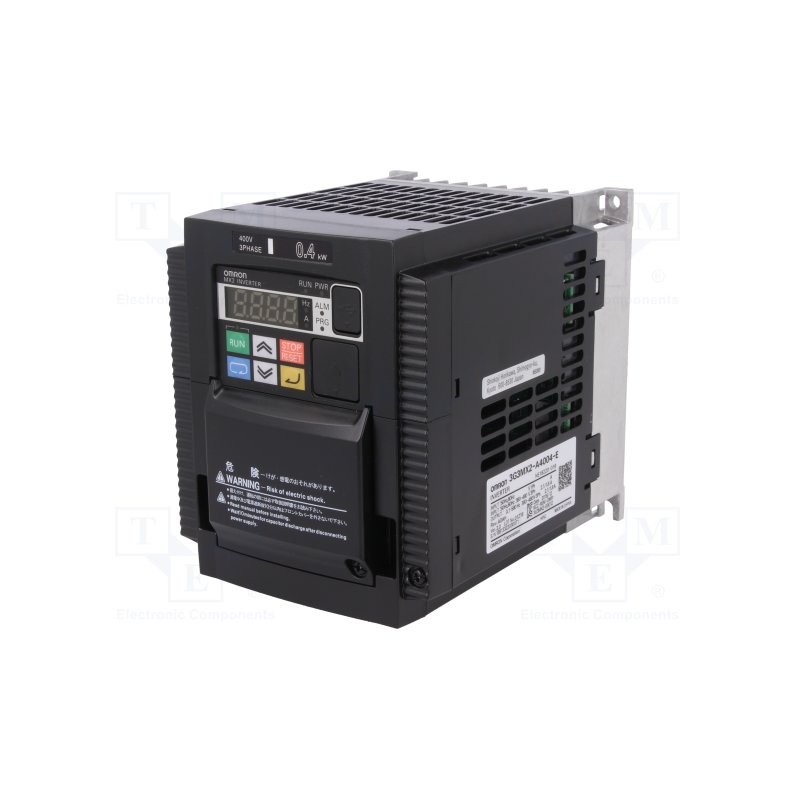

Omron 3G3MX2-A4004-E AC Drive

Series#: Omron

Product Details

3G3MX2-A4004-E – High-performance compact AC drive from OMRON, designed for precise motor control in industrial automation.
Built-in vector control and auto-tuning for optimized torque and speed regulation across varying loads.
Wide input voltage range (3-phase 380-480V AC) with robust EMC filters for stable operation in harsh environments.
Integrated RS-485 Modbus RTU communication for seamless PLC and HMI integration.
Compact, DIN-rail mountable enclosure with IP20 protection, ideal for space-constrained control panels.
Advanced protection features: overvoltage, overcurrent, overtemperature, and short-circuit safeguards.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The OMRON 3G3MX2-A4004-E is a versatile, high-efficiency variable frequency drive (VFD) engineered for demanding industrial applications requiring precise motor speed and torque control. This model, part of the MX2 series, delivers reliable performance for pumps, fans, conveyors, and other machinery, featuring advanced sensorless vector control for superior low-speed operation. With a rated output of 0.4 kW (0.5 HP) at 400V class input, the 3G3MX2-A4004-E supports both constant and variable torque loads, ensuring energy savings and reduced mechanical stress. Its built-in PID controller, dynamic braking circuit, and programmable digital inputs/outputs make it a flexible solution for complex automation systems. The drive is fully compliant with global standards, including CE and UL, and is backed by OMRON's renowned quality and support.

Parameter	Specification
Product Model	3G3MX2-A4004-E
Manufacturer	OMRON
Series	MX2
Rated Output Power	0.4 kW (0.5 HP)
Input Voltage	3-Phase, 380-480V AC, 50/60 Hz
Output Voltage	3-Phase, 0-480V AC, proportional to input
Rated Output Current	1.2 A
Control Method	V/f, Sensorless Vector, V/f with PG feedback (optional)
Frequency Range	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds, 200% for 3 seconds
Braking Torque	Approx. 150% (with optional braking resistor)
Communication Protocol	RS-485 Modbus RTU (standard)
Digital Inputs	6 (Programmable: Start/Stop, Multi-step speed, etc.)
Digital Outputs	2 (Relay: Fault, Run, etc.)
Analog Inputs	1 (0-10V or 4-20 mA, selectable)
Analog Outputs	1 (0-10V or 4-20 mA, selectable)
Protection Class	IP20
Enclosure Type	Compact, DIN-rail mountable
Operating Temperature	-10°C to +50°C (derate above 40°C)
Storage Temperature	-20°C to +65°C
Humidity	20% to 90% RH (non-condensing)
Altitude	Up to 1000 meters (derate above)
EMC Filter	Integrated (Class A, per EN 61800-3)
Certifications	CE, UL, cUL, RoHS
Weight	Approx. 0.6 kg
Dimensions (H x W x D)	128 mm x 68 mm x 115 mm
