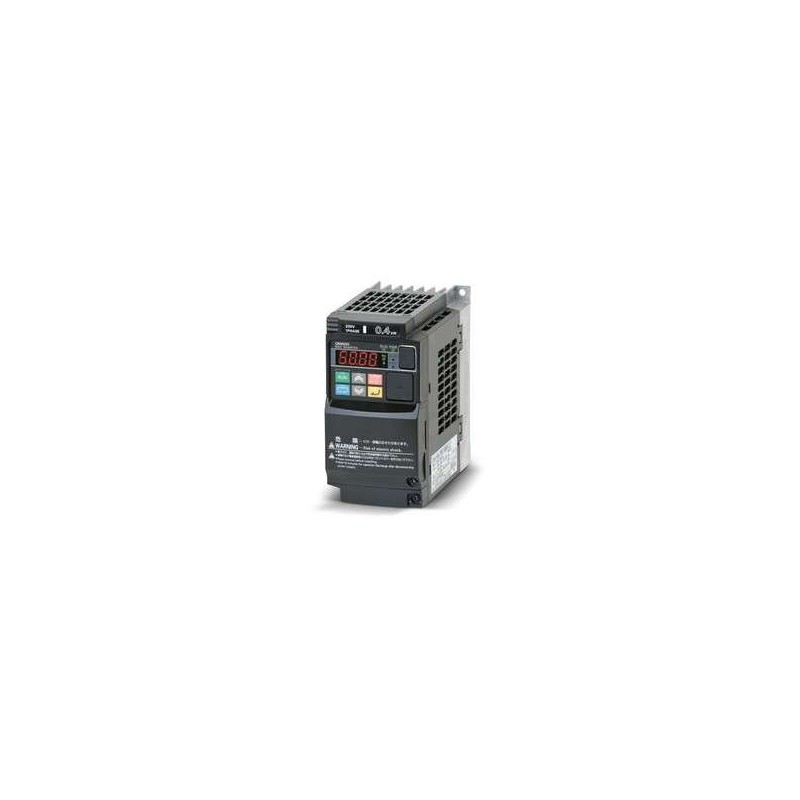

The OMRON 3G3MX2-AB001-V1 is a state-of-the-art, compact general-purpose inverter engineered for precise speed and torque control of standard AC induction motors. This model, part of the MX2 series, offers exceptional performance for light industrial applications requiring reliable variable frequency drive (VFD) operation. With its advanced vector control algorithm, the 3G3MX2-AB001-V1 ensures smooth motor acceleration and deceleration, reducing mechanical stress and improving process efficiency. It features a user-friendly digital keypad for easy parameter setup and monitoring, making it ideal for OEMs and system integrators seeking a cost-effective yet powerful drive solution.
| Parameter |
Specification |
| Model Number |
3G3MX2-AB001-V1 |
| Rated Output Power |
0.1 kW (0.13 HP) |
| Rated Input Voltage |
Single-phase 200-240 VAC, 50/60 Hz |
| Rated Output Current |
0.8 A (continuous) |
| Control Method |
V/f Control, Sensorless Vector Control |
| Frequency Range |
0.1 to 400 Hz |
| Overload Capacity |
150% for 60 seconds, 200% for 3 seconds |
| Protection Class |
IP20 (NEMA 1) |
| Communication Port |
RS-485 (Modbus RTU) |
| Digital Inputs |
6 programmable (NPN/PNP selectable) |
| Analog Input |
1 x 0-10 VDC or 4-20 mA |
| Digital Outputs |
2 programmable relay outputs |
| Analog Output |
1 x 0-10 VDC or 4-20 mA |
| Built-in Braking Transistor |
Yes |
| Operating Temperature |
-10°C to +50°C (14°F to 122°F) |
| Dimensions (W x H x D) |
68 mm x 128 mm x 97 mm (2.68 in x 5.04 in x 3.82 in) |
| Weight |
Approx. 0.6 kg (1.32 lbs) |
| Standards Compliance |
CE, UL, cUL, RoHS |
