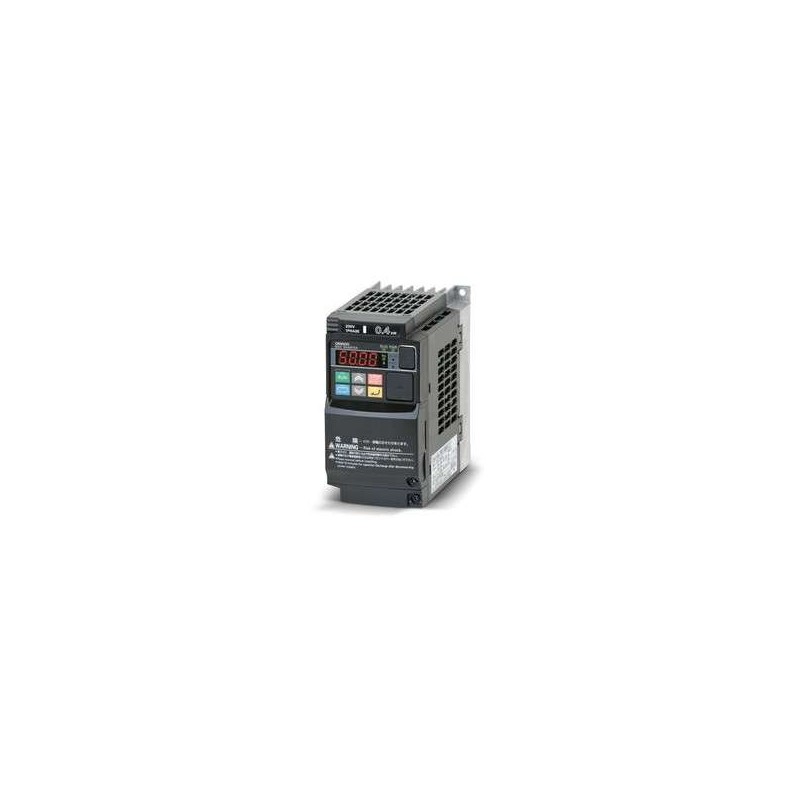

The OMRON 3G3MX2-A2150-E is a robust, compact AC drive engineered for demanding industrial applications requiring precise speed and torque control. With a power rating of 15 kW (20 HP) at 200-240V AC input, this model features advanced sensorless vector control technology, enabling accurate motor regulation without an encoder. Its built-in PLC functionality and flexible I/O configuration make it a versatile solution for complex automation tasks, such as packaging, material handling, and HVAC systems. The drive supports both analog and digital inputs, with a dedicated safety input for emergency stop, ensuring compliance with global safety standards. The 3G3MX2-A2150-E is part of the MX2 series, known for its energy efficiency and ease of setup, making it a preferred choice for system integrators and OEMs worldwide.
| Parameter |
Specification |
| Model |
3G3MX2-A2150-E |
| Input Voltage |
3-Phase 200-240 VAC, ±10% |
| Input Frequency |
50/60 Hz, ±5% |
| Output Power |
15 kW (20 HP) |
| Output Current |
60 A |
| Control Method |
V/f, Sensorless Vector Control, Open Loop Vector |
| Frequency Range |
0.01 to 400 Hz |
| Overload Capacity |
150% for 60 seconds, 200% for 0.5 seconds |
| Built-in PLC |
Yes, with ladder logic support |
| Digital Inputs |
8 (NPN/PNP selectable) |
| Analog Inputs |
2 (0-10V, 4-20mA) |
| Analog Outputs |
1 (0-10V) |
| Relay Outputs |
2 (Form C, 250VAC/30VDC) |
| Communication Protocol |
RS-485 Modbus RTU |
| Safety Feature |
Safe Torque Off (STO) input |
| Protection Rating |
IP20 (NEMA 1) |
| Ambient Temperature |
-10°C to +50°C (derate above 40°C) |
| Dimensions (H x W x D) |
260 mm x 140 mm x 180 mm |
| Weight |
Approx. 3.5 kg |
| Compliance |
CE, UL, cUL, RoHS |
