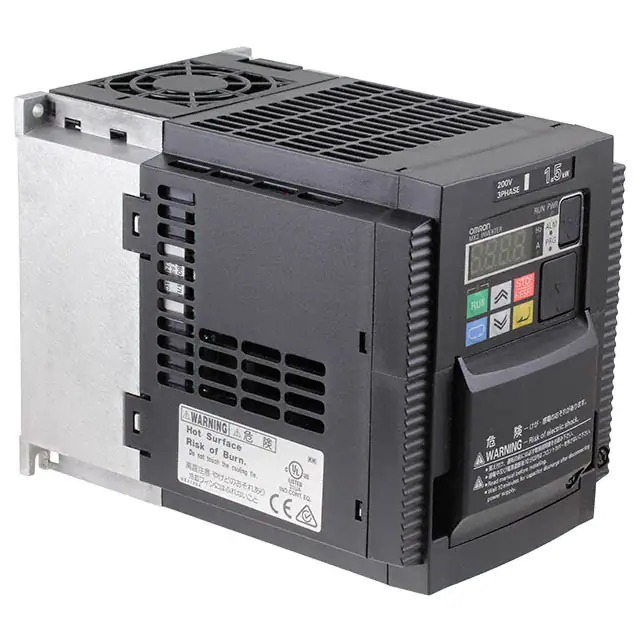

Omron 3G3MX2-A2015-V1 MX Inverter Drive

Series#: Omron

Product Details

3G3MX2-A2015-V1 OMRON – High-performance compact AC drive for industrial motor control.
Rated for 1.5 kW output, 200-240 VAC input, ideal for variable torque applications.
Built-in PID control, dynamic braking transistor, and RS-485 Modbus communication.
Compact design with easy-to-use keypad and parameter copy function for quick setup.
Advanced vector control for precise speed and torque regulation in demanding environments.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The 3G3MX2-A2015-V1 OMRON is a versatile and robust AC drive engineered for industrial automation, offering precise motor control in a compact footprint. This model delivers 1.5 kW output power from a 200-240 VAC three-phase input, supporting a wide range of applications from conveyors to pumps. With its advanced sensorless vector control, it ensures high starting torque and stable speed regulation even under varying loads. The drive incorporates comprehensive protection features including overcurrent, overvoltage, and overtemperature safeguards, making it reliable for continuous operation. Designed for easy integration, it includes built-in Modbus RTU communication, a braking transistor for dynamic stopping, and a user-friendly digital keypad for parameter adjustments. Ideal for OEMs and system integrators, the 3G3MX2-A2015-V1 combines performance with cost-effectiveness in a space-saving package.

Parameter	Specification
Model	3G3MX2-A2015-V1 OMRON
Input Voltage	200-240 VAC, 3-phase, 50/60 Hz
Rated Output Power	1.5 kW (2.0 HP)
Rated Output Current	7.0 A
Control Method	V/f control, Sensorless Vector Control (SLV)
Frequency Range	0.0 to 400.0 Hz
Overload Capacity	150% for 60 seconds, 200% for 0.5 seconds
Dynamic Braking	Built-in braking transistor (external resistor required)
Communication Protocol	RS-485 Modbus RTU (standard)
Protection Features	Overcurrent, overvoltage, undervoltage, overtemperature, phase loss, motor overload
Digital Inputs	8 programmable digital inputs (sink/source)
Digital Outputs	3 programmable digital outputs (relay and transistor)
Analog Inputs	2 analog inputs (0-10 V, 4-20 mA)
Analog Outputs	1 analog output (0-10 V, 4-20 mA)
Keypad	6-digit LED display, navigation keys, potentiometer
Ambient Temperature	-10°C to +50°C (14°F to 122°F) without derating
Enclosure Rating	IP20 (open type)
Weight	Approx. 1.2 kg (2.65 lbs)
Compliance	CE, UL, cUL, RoHS
