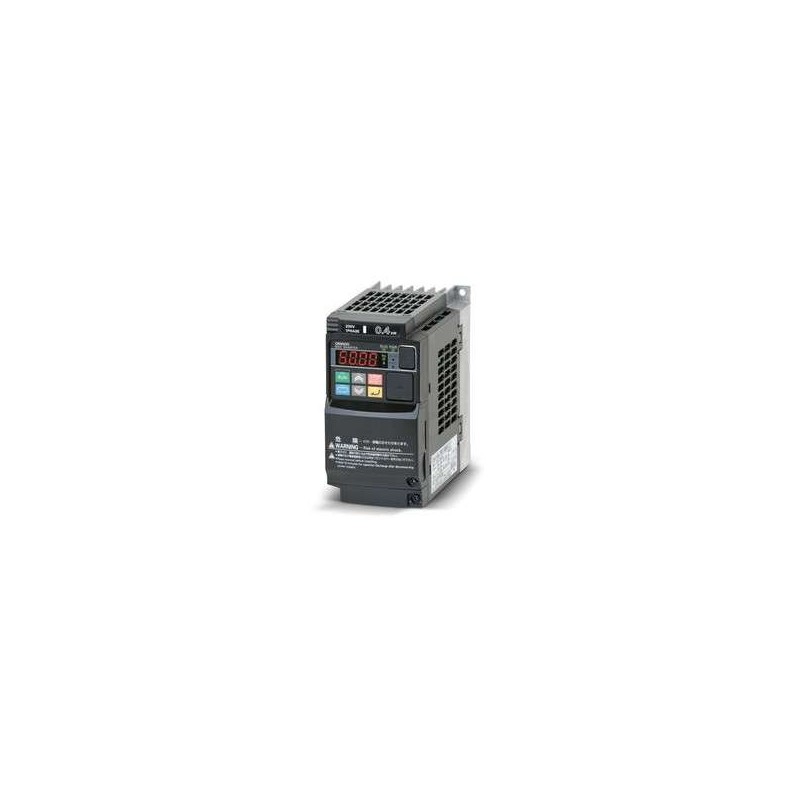

The OMRON 3G3MX2-A2015-E is a robust, general-purpose inverter engineered for demanding industrial automation tasks. This 200V AC class, 1.5 kW drive delivers precise motor speed and torque control through advanced vector algorithms, making it suitable for conveyors, fans, pumps, and packaging machinery. Its built-in EMC filter ensures compliance with international standards, while the dynamic braking resistor slot enhances deceleration performance. The 3G3MX2-A2015-E features a user-friendly keypad, multiple analog and digital I/O points, and support for Modbus-RTU communication, allowing seamless integration into existing control systems. With a compact footprint and IP20 protection, it is easy to install in control cabinets. This model is 100% original and new, backed by OMRON’s reliability and fast shipping from our global warehouse.
| Parameter |
Specification |
| Model Number |
3G3MX2-A2015-E |
| Input Voltage |
3-Phase, 200-240V AC, 50/60 Hz |
| Output Power |
1.5 kW (2.0 HP) |
| Rated Output Current |
7.5 A |
| Control Method |
V/f, Vector Control (Sensorless) |
| Frequency Range |
0.1 – 400 Hz |
| Overload Capacity |
150% for 60 seconds, 200% for 3 seconds |
| Built-in EMC Filter |
Yes (Class C2) |
| Dynamic Braking |
Built-in transistor, external resistor required |
| Analog Inputs |
2 (0-10V, 4-20 mA) |
| Digital Inputs |
6 (NPN/PNP selectable) |
| Relay Outputs |
1 (Form C, 250V AC/30V DC, 1A) |
| Analog Output |
1 (0-10V) |
| Communication |
Modbus-RTU (RS-485) |
| Protection Class |
IP20 |
| Ambient Temperature |
-10°C to +50°C (derating above 40°C) |
| Dimensions (W x H x D) |
Approx. 110 x 160 x 130 mm |
| Weight |
Approx. 1.2 kg |
