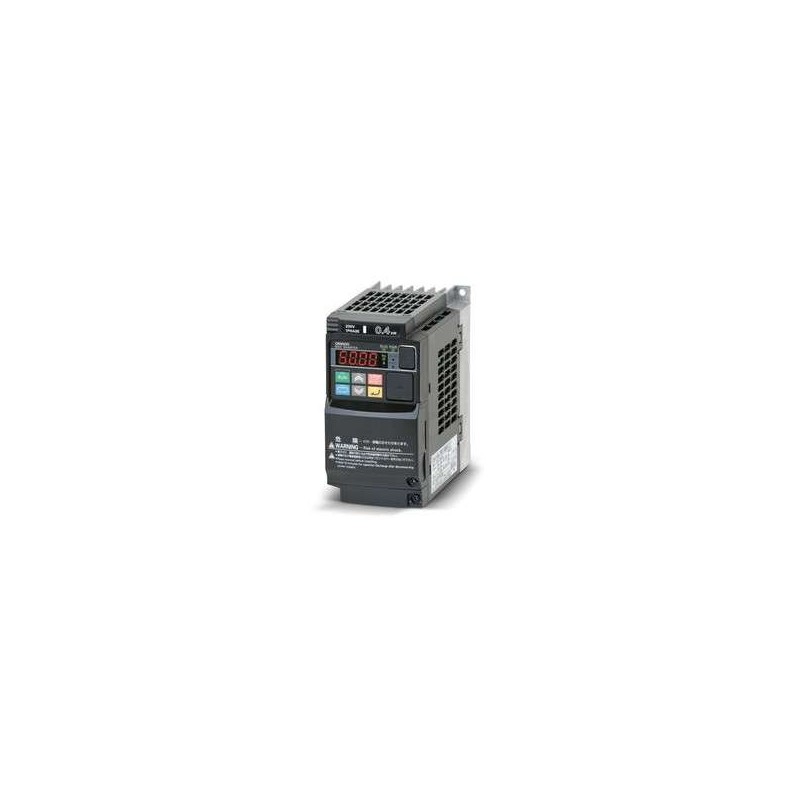

The OMRON 3G3MX2-A2007-E is a robust and reliable variable frequency drive (VFD) designed for 3-phase 200V AC applications, delivering 0.75 kW of output power. Engineered for precise motor control, this inverter supports multiple control modes including V/f, vector, and open-loop vector, ensuring optimal performance in conveyors, pumps, fans, and other industrial machinery. With a built-in PID controller and RS-485 Modbus communication, the 3G3MX2-A2007-E integrates seamlessly into automation systems, while its compact IP20 design allows for space-saving panel installation. This model is 100% original and new, available for fast shipping from stock.
| Parameter |
Specification |
| Model Number |
3G3MX2-A2007-E |
| Input Voltage |
3-Phase, 200-240 V AC, 50/60 Hz |
| Output Voltage |
3-Phase, 0-240 V AC (proportional to input) |
| Rated Output Power |
0.75 kW (1 HP) |
| Rated Output Current |
4.2 A |
| Control Method |
V/f control, vector control, open-loop vector control |
| Frequency Range |
0.01 – 400 Hz |
| Overload Capacity |
150% for 60 seconds, 200% for 3 seconds |
| Protection Functions |
Overload, overvoltage, undervoltage, short-circuit, ground fault, overheat |
| Communication Interface |
RS-485 Modbus RTU (standard) |
| Analog Inputs |
1 x 0-10 V DC, 1 x 4-20 mA (configurable) |
| Digital Inputs |
8 x programmable (24 V DC) |
| Analog Outputs |
1 x 0-10 V DC (configurable) |
| Digital Outputs |
2 x relay outputs, 1 x open collector |
| Built-in PID Control |
Yes, with sleep/wake function |
| Enclosure Type |
IP20 (panel mount) |
| Operating Temperature |
-10°C to +50°C (14°F to 122°F) |
| Dimensions (W x H x D) |
Approx. 72 mm x 140 mm x 130 mm |
| Weight |
Approx. 0.9 kg |
| Compliance |
CE, UL, cUL, RoHS |
