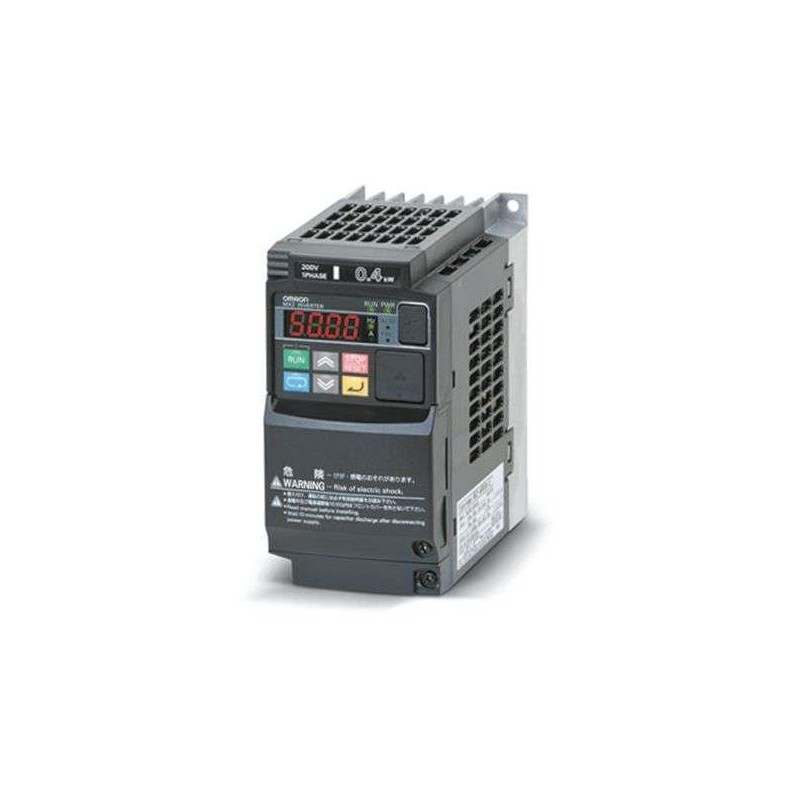

Omron 3G3MX2-A2007-V1 MX Inverter Drive

Series#: Omron

Product Details

The 3G3MX2-A2007-V1 OMRON is a high-performance compact AC drive designed for precise motor control in industrial automation.
This model supports 200V class input, rated at 0.75 kW (1 HP), ideal for small to medium machinery applications.
Features advanced vector control and auto-tuning for enhanced torque and speed accuracy across a wide range.
Built-in EMC filter and dynamic braking circuit reduce system noise and improve operational safety.
Easy-to-use keypad with LCD display for quick parameter setup and real-time monitoring.
Compact design saves cabinet space while offering robust protection against overvoltage, overload, and short circuits.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The 3G3MX2-A2007-V1 OMRON is a versatile and reliable AC drive from the MX2 series, engineered for demanding industrial environments. It delivers precise speed and torque control for induction motors, making it suitable for conveyors, pumps, fans, and other automation systems. With a compact footprint and integrated safety features, this drive simplifies installation and reduces maintenance costs. The unit supports both V/f and vector control modes, allowing flexibility for various load types. Its robust design includes built-in PID control, multi-step speed settings, and communication options like RS-485 Modbus for easy integration into existing networks.

Parameter	Specification
Model Number	3G3MX2-A2007-V1
Input Voltage	3-Phase 200-240 VAC, 50/60 Hz
Output Power Rating	0.75 kW (1 HP)
Output Current	4.2 A (RMS)
Control Method	V/f Control, Sensorless Vector Control
Frequency Range	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds, 200% for 3 seconds
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overheating, Short Circuit, Ground Fault
Communication Interface	RS-485 Modbus RTU (Standard), Optional Fieldbus
Built-in Functions	PID Control, Auto-Tuning, Multi-Step Speed, Jog, S-Curve Acceleration/Deceleration
Digital Inputs	6 (Configurable: Start/Stop, Speed Selection, Reset, etc.)
Digital Outputs	2 (Relay and Open Collector)
Analog Inputs	1 (0-10V or 4-20 mA)
Analog Output	1 (0-10V or 4-20 mA)
EMC Filter	Built-in (Class A or Class B, depending on configuration)
Dynamic Braking	Built-in with external resistor option
Operating Temperature	-10°C to +50°C (14°F to 122°F)
Enclosure Rating	IP20 (NEMA 1)
Weight	Approx. 1.2 kg (2.65 lbs)
Dimensions (W x H x D)	68 mm x 128 mm x 105 mm (2.68 in x 5.04 in x 4.13 in)
Compliance Standards	CE, UL, cUL, RoHS
