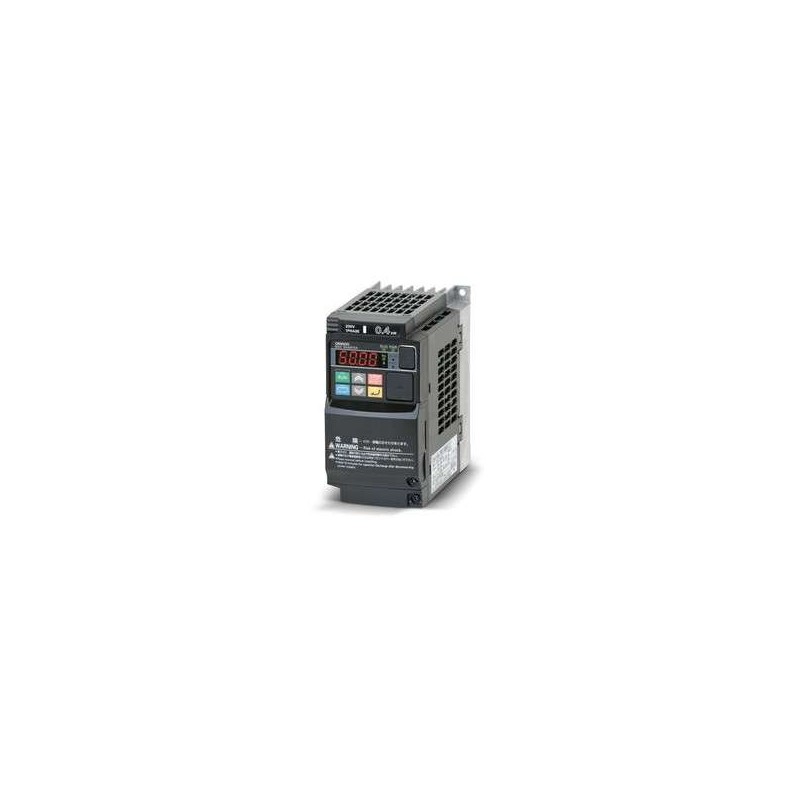

The OMRON 3G3MX2-A2002-E is a versatile and reliable compact AC drive designed for energy-efficient motor control in applications such as conveyors, fans, and small pumps. This 0.2 kW model, part of the MX2 series, delivers exceptional performance with sensorless vector control, enabling accurate speed and torque management without the need for an encoder. Its robust design includes built-in EMC filters, dynamic braking capability, and a user-friendly interface. The 3G3MX2-A2002-E is engineered for easy integration into existing systems, supporting both 200V AC single-phase and three-phase inputs, and is fully compliant with global industrial standards.
| Parameter |
Specification |
| Model Number |
3G3MX2-A2002-E |
| Manufacturer |
OMRON (Industrial Automation) |
| Product Series |
MX2 Series |
| Rated Output Power |
0.2 kW (0.25 HP) |
| Input Voltage |
200-240V AC, 3-phase (also supports single-phase input) |
| Input Frequency |
50/60 Hz |
| Output Voltage |
0-240V AC, 3-phase |
| Rated Output Current |
1.2 A |
| Control Method |
V/f control, sensorless vector control, and open-loop vector control |
| Frequency Range |
0.1 to 400 Hz |
| Overload Capacity |
150% rated current for 60 seconds, 200% for 3 seconds |
| Protection Class |
IP20 (enclosed type) |
| Communication |
RS485 Modbus RTU (standard), optional fieldbus modules |
| Built-in Functions |
PID control, multi-step speed, jogging, DC injection braking, auto-tune |
| Keypad Interface |
LCD display with 4-digit LED, potentiometer, and navigation keys |
| Mounting |
DIN rail or panel mount (with optional bracket) |
| Ambient Temperature |
-10°C to +50°C (derating above 40°C) |
| Humidity |
20% to 90% RH (non-condensing) |
| Approvals |
CE, UL, cUL, RoHS |
| Weight |
Approx. 0.6 kg |
| Dimensions (W x H x D) |
68 mm x 128 mm x 105 mm |
| Application Examples |
Small conveyors, fans, pumps, mixers, and machine tools |
