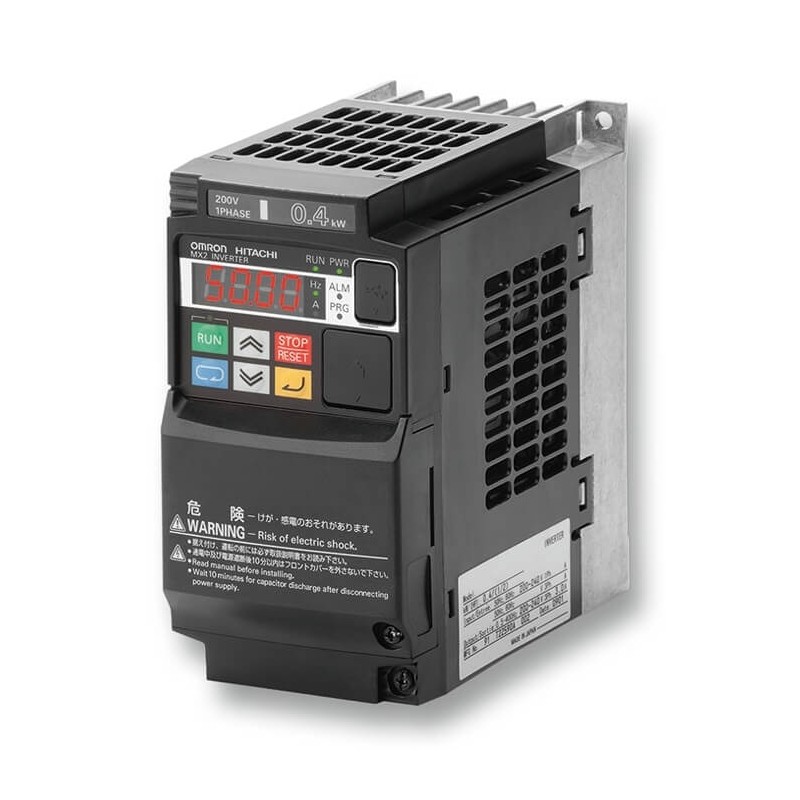

Omron 3G3MX2-A2001-E MX Inverter Drive

Series#: Omron

Product Details

3G3MX2-A2001-E – High-Performance OMRON MX Inverter Drive for precise motor control in industrial applications.
Rated for 0.4 kW output at 200 VAC input, ideal for small-to-medium duty variable speed drives.
Compact design with built-in EMC filter, reducing installation space and external component costs.
Advanced vector control for torque and speed regulation, supporting both induction and permanent magnet motors.
Integrated RS-485 Modbus communication for easy PLC integration and remote monitoring.
Robust protection features: overcurrent, overvoltage, and thermal overload safeguards for long-term reliability.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The 3G3MX2-A2001-E is a versatile OMRON MX Series Inverter Drive engineered for energy-efficient motor control in industrial automation systems. This model delivers 0.4 kW of output power at a nominal 200 VAC input, making it an ideal choice for conveyor systems, pumps, fans, and other light-duty variable speed applications. With its compact footprint and built-in EMC filter, the 3G3MX2-A2001-E simplifies panel layout while ensuring compliance with stringent electromagnetic compatibility standards. The drive supports advanced sensorless vector control for precise torque and speed management, and it is compatible with both standard induction motors and permanent magnet synchronous motors. Integrated RS-485 Modbus RTU communication enables seamless integration into PLC-based networks, while the intuitive keypad allows easy parameter tuning. Protective features include automatic overcurrent limiting, overvoltage suppression, and thermal overload monitoring, guaranteeing reliable operation in demanding industrial environments.

Parameter	Specification
Product Series	OMRON MX Series
Model Number	3G3MX2-A2001-E
Rated Output Power	0.4 kW (0.5 HP)
Input Voltage	3-Phase, 200-240 VAC, 50/60 Hz
Output Voltage	3-Phase, 0-240 VAC (Proportional to Input)
Rated Output Current	2.5 A
Control Method	V/f Control, Sensorless Vector Control, Open-Loop Vector Control
Frequency Control Range	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds, 200% for 3 seconds
Built-in EMC Filter	Yes (Class C2, for First Environment)
Communication Interface	RS-485 Modbus RTU (Standard), Optional Fieldbus Modules
Digital Inputs	4 Programmable (NPN/PNP Selectable)
Digital Outputs	2 Programmable (Relay and Open Collector)
Analog Input	1 (0-10 VDC / 4-20 mA, Selectable)
Analog Output	1 (0-10 VDC / 4-20 mA, Selectable)
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overload, Overtemperature, Phase Loss
Ambient Operating Temperature	-10°C to +50°C (Derating Above 40°C)
Enclosure Rating	IP20 (Open Type)
Cooling Method	Natural Convection (No Fan Required)
Weight	Approx. 0.6 kg
Dimensions (W x H x D)	68 mm x 128 mm x 105 mm
Compliance	CE, UL, cUL, RoHS
