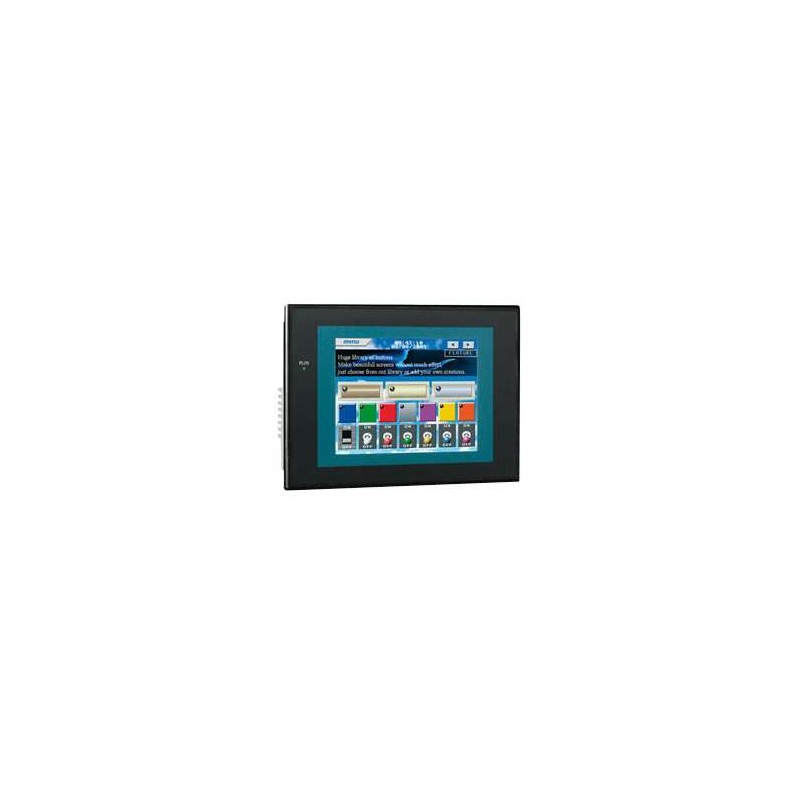

The OMRON NS10-TV01B-V2 is a high-performance 10.4-inch programmable terminal from the renowned NS Series, designed to deliver superior visualization and control in complex automation systems. This V2 model incorporates a high-definition TFT color LCD with a resolution of 640x480 pixels, offering exceptional clarity for detailed graphics, alarm screens, and data displays. With its enhanced processing power and expanded memory, the NS10-TV01B-V2 supports faster screen transitions, multi-language support, and advanced recipe management. It features a robust, IP65-rated front panel for reliable operation in dusty, wet, or vibrating environments. Connectivity is comprehensive, including built-in Ethernet for network integration, dual serial ports (RS-232C and RS-422A) for legacy device communication, and USB host/device ports for data transfer and peripheral connection. The terminal is fully compatible with OMRON CX-Designer software, enabling intuitive screen creation and real-time data monitoring. Whether used for machine control, process monitoring, or HMI in discrete manufacturing, the NS10-TV01B-V2 ensures long-term reliability and seamless integration into existing automation architectures.
| Parameter |
Specification |
| Model Number |
NS10-TV01B-V2 |
| Display Type |
10.4-inch TFT Color LCD |
| Resolution |
640 x 480 pixels (VGA) |
| Display Colors |
256 colors (standard), 32,768 colors (max via palette) |
| Backlight |
CCFL (Cold Cathode Fluorescent Lamp), replaceable |
| Backlight Life |
50,000 hours (typical, 25°C) |
| Touch Panel |
Analog resistive, single-touch |
| Processor |
32-bit RISC CPU, V2 enhanced |
| User Memory |
20 MB (system + application), expandable via CF card |
| Ethernet |
1 x 10/100Base-TX (RJ-45) |
| Serial Ports |
1 x RS-232C (9-pin D-sub), 1 x RS-422A/485 (terminal block) |
| USB Ports |
1 x USB Host (Type A), 1 x USB Device (Mini-B) |
| Memory Card Slot |
1 x CompactFlash (CF) Type I/II |
| Protection Rating |
IP65 (front panel, per IEC 60529) |
| Operating Temperature |
0 to 50°C (32 to 122°F) |
| Storage Temperature |
-20 to 60°C (-4 to 140°F) |
| Humidity |
10% to 90% RH (non-condensing) |
| Power Supply |
24 VDC (20.4 to 27.6 VDC), typical 25W |
| Dimensions (W x H x D) |
317 x 240 x 55 mm (12.48 x 9.45 x 2.17 inches) |
| Weight |
Approx. 2.5 kg (5.5 lbs) |
| Software Compatibility |
CX-Designer V3.1 or later |
| Certifications |
CE, UL, cUL, RoHS |
