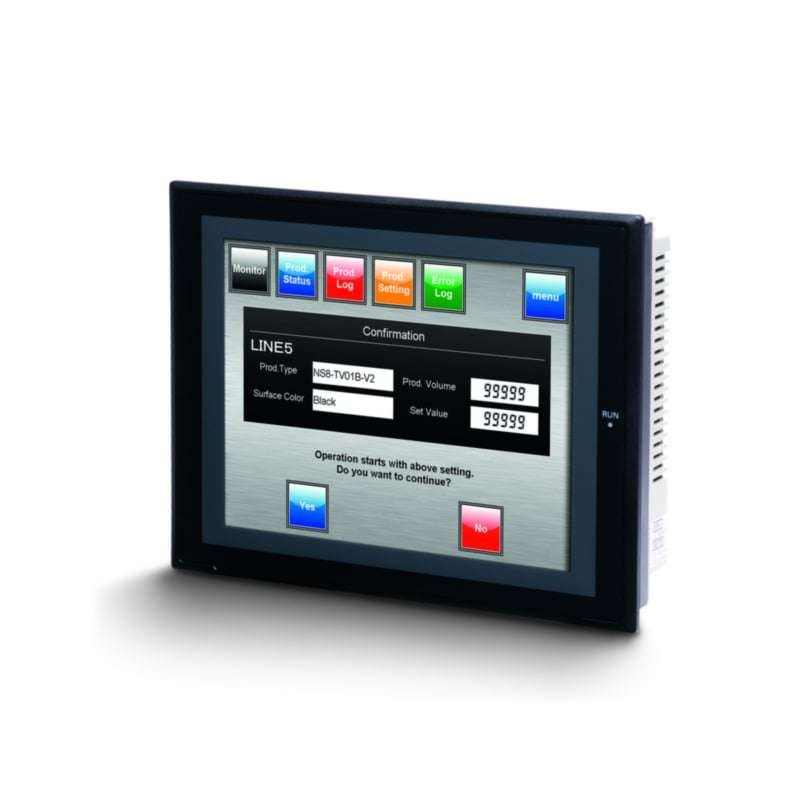

Omron NS8-TV01B-V2 8.4 inch Touch Screen HMI

Series#: Omron

Product Details

Model: NS8-TV01B-V2 – High-performance 8.4-inch OMRON Touch Screen HMI.
8.4-inch TFT color LCD display with 256 colors for clear, intuitive operator interface.
Robust industrial design, ideal for factory automation and process control applications.
Supports OMRON NS-series programming software for easy configuration and integration.
Enhanced reliability with long operational life and low power consumption.
Fast delivery from stock – minimal lead time for urgent projects.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The OMRON NS8-TV01B-V2 is a versatile 8.4-inch Touch Screen HMI designed for demanding industrial environments. As part of the renowned NS-series, this model delivers a crisp TFT display with 256 colors, ensuring clear visualization of process data, alarms, and control interfaces. The NS8-TV01B-V2 supports seamless integration with OMRON PLCs and other automation devices via standard communication protocols, making it an ideal choice for machine builders and system integrators requiring reliable human-machine interface solutions. Its compact footprint and robust construction ensure long-term performance in harsh factory conditions.

Parameter	Specification
Model	NS8-TV01B-V2
Display Type	8.4-inch TFT Color LCD
Display Colors	256 Colors
Resolution	800 x 600 pixels (SVGA)
Backlight	CCFL (replaceable)
Touch Screen	Analog resistive, single-touch
Communication Ports	1x RS-232C, 1x RS-422A/485, 1x USB (Type B), 1x Ethernet (10/100Base-TX)
Memory	32 MB Flash (user area)
Backup Memory	128 KB SRAM (battery-backed)
Power Supply	24 VDC (20.4 to 27.6 VDC)
Power Consumption	Max. 20 W
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Humidity	20% to 85% RH (non-condensing)
Protection Rating	IP65 (front panel)
Dimensions (W x H x D)	230 x 180 x 60 mm (9.06 x 7.09 x 2.36 inches)
Weight	Approx. 1.5 kg (3.3 lbs)
Software Compatibility	NS-Designer (CX-One or standalone)
Certifications	CE, UL, cUL
