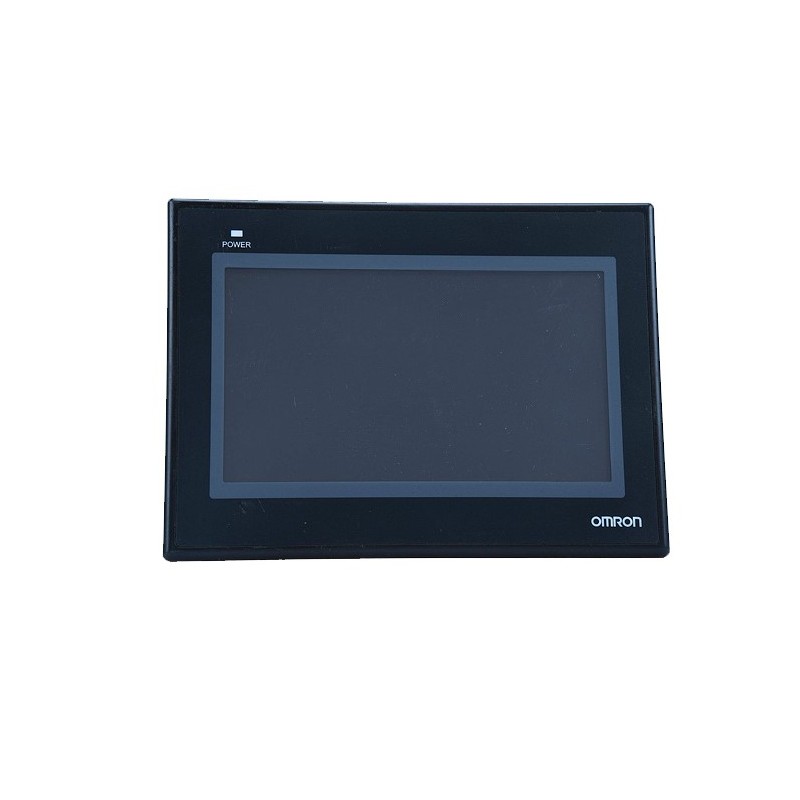

Omron NS8-TV00B-ECV2 8.4 inch Touch Screen HMI

Series#: Omron

Product Details

Product Model: NS8-TV00B-ECV2 – High-performance 8.4-inch TFT touch screen HMI for industrial automation.
256-color display with crisp resolution and wide viewing angle for clear operator interface.
Advanced Ethernet and serial communication support for seamless PLC integration.
Built-in high-speed processing with Omron’s proven NS-series reliability.
Designed for harsh environments with robust front panel protection.
Easy configuration via CX-Designer software for rapid project deployment.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Omron NS8-TV00B-ECV2 is a rugged 8.4-inch TFT color touch screen HMI engineered for demanding industrial control systems. This model delivers 256-color graphical display with a resolution of 640 x 480 pixels, providing clear visualization for machine monitoring and operator input. It features an Ethernet port for network connectivity, two serial ports (RS-232C and RS-422A/485) for versatile communication with PLCs and other devices, and a high-speed CPU for responsive touch operation. The NS8-TV00B-ECV2 supports Omron’s CX-Designer software, enabling efficient screen creation and data logging. Its IP65-rated front panel ensures resistance to dust and water, making it suitable for factory floor use. Below are the detailed technical specifications.

Specification	Details
Model Number	NS8-TV00B-ECV2
Display Type	8.4-inch TFT Color LCD
Display Colors	256 Colors
Resolution	640 x 480 pixels (VGA)
Backlight	CCFL, replaceable
Touch Panel	Analog resistive, single-touch
Processor	32-bit RISC CPU
Memory	4 MB application memory, 512 KB SRAM
Ethernet Interface	1 x 10/100Base-TX (RJ-45)
Serial Interfaces	1 x RS-232C, 1 x RS-422A/485 (D-sub 9-pin)
USB Ports	1 x USB Host (Type-A), 1 x USB Slave (Type-B)
Power Supply	24 VDC (20.4 to 27.6 VDC)
Power Consumption	20 W max
Backlight Life	50,000 hours (typical)
Front Panel Protection	IP65 (NEMA 4 equivalent)
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Operating Humidity	10% to 90% RH (non-condensing)
Vibration Resistance	10 to 57 Hz, 0.075 mm amplitude; 57 to 150 Hz, 9.8 m/s²
Shock Resistance	147 m/s² (15 G), 11 ms duration
Weight	Approx. 2.0 kg (4.4 lbs)
Dimensions (W x H x D)	235 x 175 x 58 mm (9.25 x 6.89 x 2.28 inches)
Software Compatibility	CX-Designer (version 3.0 or later)
Certifications	CE, UL, cUL, RoHS
