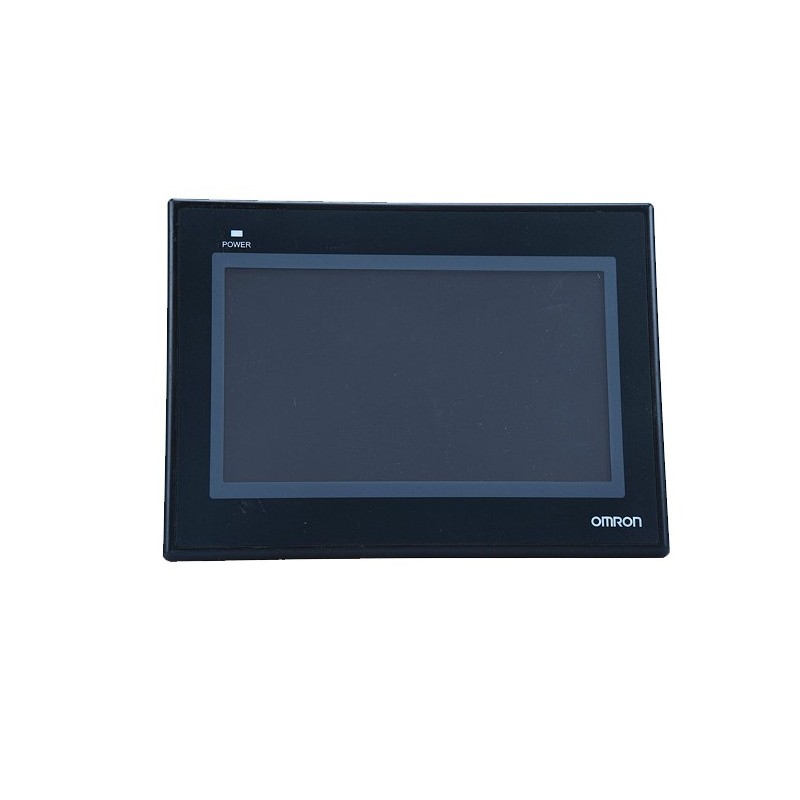

Omron NS5-TQ10B-ECV2 5.7 inch Color TFT Display

Series#: Omron

Product Details

NS5-TQ10B-ECV2 – High-performance 5.7-inch color TFT display device from OMRON.
256-color display capability with crisp, clear visuals for industrial HMI applications.
Compact panel-mount design ideal for space-constrained control cabinets.
Robust touch-screen interface with reliable operation in harsh environments.
Supports OMRON NS-series programming software for seamless integration.
Direct replacement or upgrade for legacy NS5-series units.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The OMRON NS5-TQ10B-ECV2 is a 5.7-inch color TFT display device engineered for demanding industrial automation environments. As part of the renowned NS-series HMI family, it delivers 256-color resolution with a bright, high-contrast screen suitable for real-time monitoring and operator control. This model is designed for panel-mount installation and features a resistive touch-screen that ensures reliable input even with gloved hands. With its compact footprint and robust construction, the NS5-TQ10B-ECV2 is ideal for applications in manufacturing, packaging, and process control. It supports Ethernet, serial, and USB communication for flexible connectivity, and is fully programmable via OMRON CX-One or Sysmac Studio software. Each unit is 100% Original and New, factory-sealed, and available for prompt worldwide dispatch.

Parameter	Specification
Model Number	NS5-TQ10B-ECV2
Display Type	Color TFT LCD
Screen Size	5.7 inches (diagonal)
Display Colors	256 colors
Resolution	320 x 240 pixels (QVGA)
Backlight	Cold cathode fluorescent lamp (CCFL)
Touch Screen	Resistive analog touch panel
Input Voltage	24 VDC (nominal)
Power Consumption	20 W maximum
Communication Ports	1 x Ethernet (10/100Base-T), 1 x RS-232C, 1 x RS-422A/485, 1 x USB (Host/Device)
Memory	System: 4 MB Flash, Application: 4 MB SRAM (battery-backed)
External Storage	CompactFlash card slot (Type I/II)
Protection Rating	IP65 (front panel), IP20 (rear enclosure)
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Humidity	10% to 90% RH (non-condensing)
Vibration Resistance	10 to 150 Hz, 0.075 mm amplitude (1G)
Shock Resistance	15G peak, 11 ms duration
Weight	Approx. 0.8 kg (1.76 lbs)
Mounting	Panel-mount (cut-out: 166 x 131 mm)
Compliance	CE, UL, cUL, RoHS
Software Compatibility	CX-One (NS-Designer) or Sysmac Studio
Warranty	1 year (standard)
