Omron NS5-TQ10B-ECV2 Touch Screen HMI

Series#: Omron

Product Details

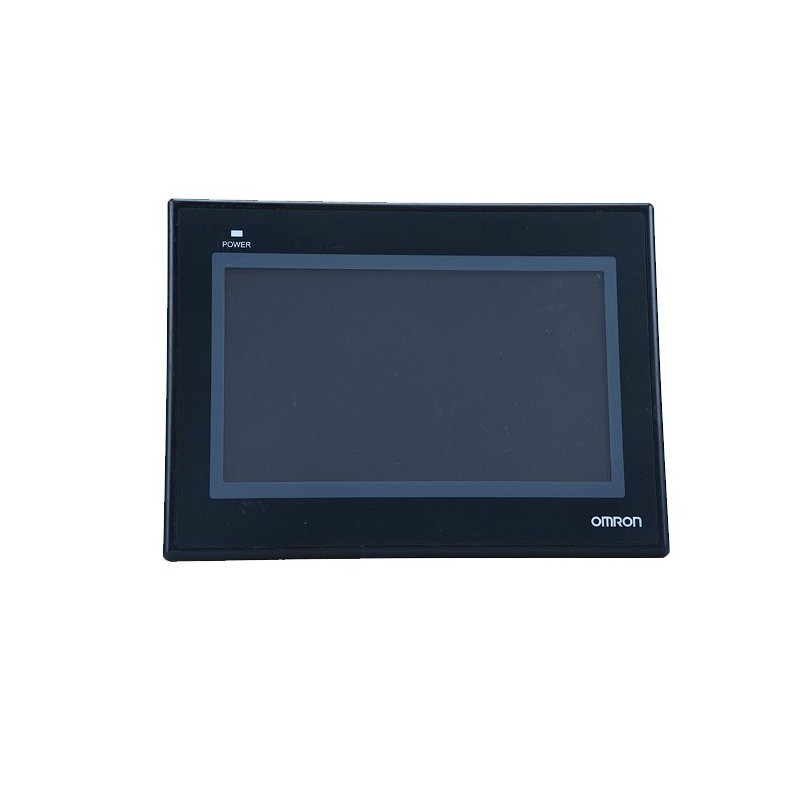

Model: NS5-TQ10B-ECV2 – OMRON 5.7-inch Color TFT Display Device, 256 Colors.
High-resolution 5.7-inch QVGA TFT LCD with vibrant 256-color display for clear operator interface.
Robust industrial design with IP65 front panel protection for harsh environments.
Supports OMRON NS-series programming software and legacy system integration.
Compact and reliable, ideal for machine control, monitoring, and data entry.
Enhanced touch panel with long-life backlight and easy maintenance.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The OMRON NS5-TQ10B-ECV2 is a 5.7-inch color TFT display device designed for industrial automation HMI applications. Featuring 256-color support and a QVGA resolution, this unit provides clear visual feedback for machine control, process monitoring, and data entry. Built on OMRON’s proven NS-series platform, the NS5-TQ10B-ECV2 offers reliable touch operation, IP65 front protection, and compatibility with a wide range of PLCs and controllers. This model is ideal for retrofitting or new installations requiring a compact, durable operator interface with legacy NS software support.

Specification	Details
Model	NS5-TQ10B-ECV2
Display Type	Color TFT LCD
Screen Size	5.7 inches (diagonal)
Resolution	320 x 240 pixels (QVGA)
Display Colors	256 colors
Backlight	Cold Cathode Fluorescent Lamp (CCFL), user-replaceable
Backlight Life	Approx. 50,000 hours (at 25°C)
Touch Panel	Analog resistive touch screen
Touch Panel Life	1 million operations minimum
Front Panel Protection	IP65 (NEMA 4 equivalent)
Processor	32-bit RISC CPU
Memory	4 MB application memory (flash), 256 KB SRAM (battery-backed)
Communication Ports	1 x RS-232C (9-pin D-sub), 1 x RS-422A/485 (terminal block), 1 x Ethernet (10Base-T/100Base-TX)
Ethernet Protocol	EtherNet/IP, TCP/IP, UDP/IP, HTTP, FTP
Supported PLCs	OMRON CJ/CS, CP, C-series; third-party via serial or Ethernet (e.g., Mitsubishi, Siemens)
Programming Software	OMRON CX-One (NS Designer), version 1.0 or later
Internal Clock	Built-in real-time clock (battery-backed)
Battery Backup	For SRAM and clock – typical life 5 years (replaceable)
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Operating Humidity	10% to 90% RH (non-condensing)
Vibration Resistance	10 to 57 Hz, 0.075 mm amplitude; 57 to 150 Hz, 9.8 m/s²
Shock Resistance	147 m/s² (15 g) for 11 ms, half-sine
Enclosure Material	Front: polycarbonate; rear: metal chassis
Mounting	Panel cutout (per OMRON NS5 standard)
Weight	Approx. 1.2 kg (2.65 lbs)
Power Supply	24 VDC ±10%, ripple ≤ 5%
Power Consumption	Max. 20W
Certifications	CE, UL, cUL, RoHS compliant
Included Accessories	Mounting gasket, terminal block, power connector, CD-ROM (manual/software)
