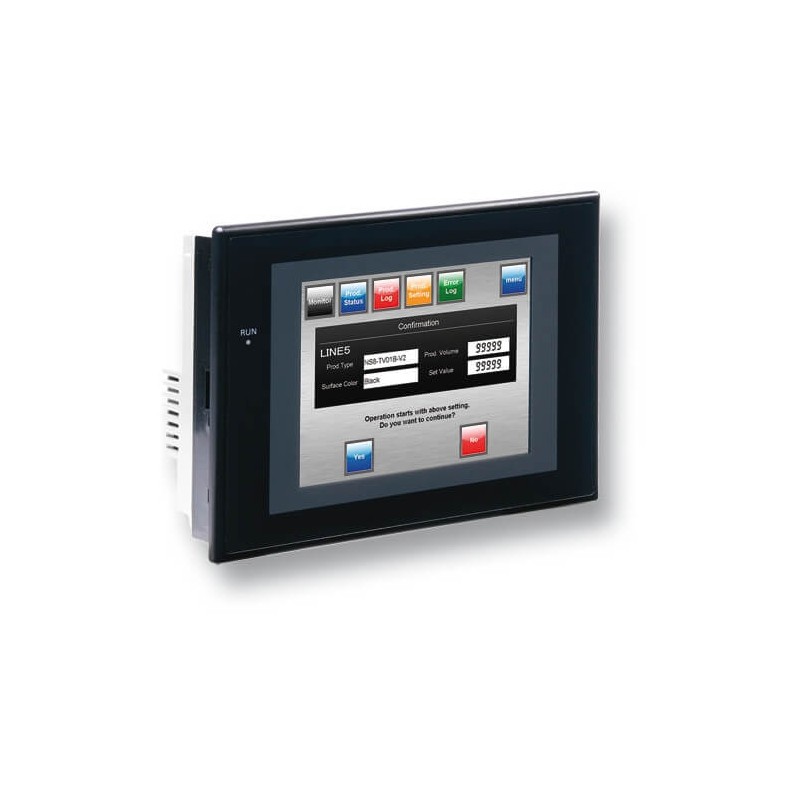

The OMRON NS5-SQ10B-ECV2 is a 5.7-inch touch screen HMI designed for demanding industrial control systems. Featuring a high-resolution TFT display with 256 colors, this unit provides exceptional clarity and user interaction. It is part of the NS-series, renowned for reliability and advanced HMI capabilities. The NS5-SQ10B-ECV2 supports Ethernet, RS-232C, and RS-422A/485 communications, making it compatible with a wide range of PLCs and controllers. Its compact footprint and rugged design ensure easy installation and long-term operation in factory automation environments.
| Parameter |
Specification |
| Display Type |
TFT Color LCD |
| Display Size |
5.7 inches (diagonal) |
| Resolution |
320 x 240 pixels (QVGA) |
| Color Support |
256 colors (8-bit) |
| Backlight |
CCFL, replaceable (MTBF: 50,000 hours typical) |
| Touch Panel |
Analog resistive, single-touch |
| Memory |
Application: 4 MB Flash; System: 1 MB SRAM |
| Communication Ports |
1 x Ethernet (10/100Base-TX), 1 x RS-232C, 1 x RS-422A/485 |
| Power Supply |
24 VDC (20.4 to 27.6 VDC, ripple 5% max) |
| Power Consumption |
15 W max |
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
| Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
| Humidity |
10% to 90% RH (non-condensing) |
| Protection Rating |
Front panel: IP65 (NEMA 4 equivalent); Rear: IP20 |
| Dimensions (W x H x D) |
186 x 144 x 60 mm (7.32 x 5.67 x 2.36 inches) |
| Panel Cutout |
172 x 132 mm (6.77 x 5.20 inches) |
| Weight |
Approx. 0.9 kg (1.98 lbs) |
| Certifications |
CE, UL, cUL, RoHS |
| Software Compatibility |
OMRON CX-Designer (NS series) |
