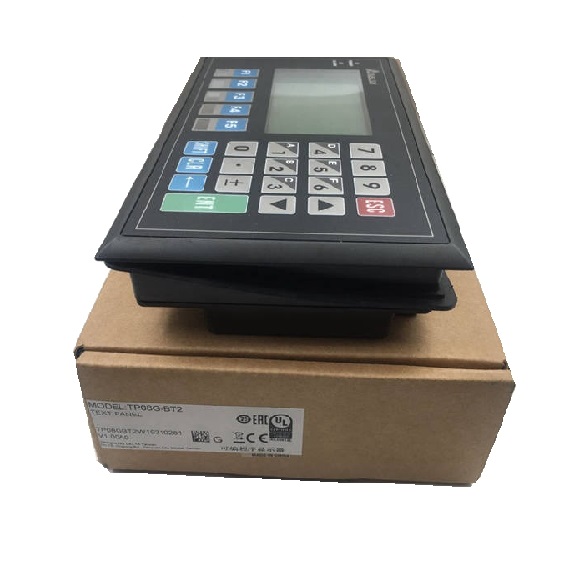

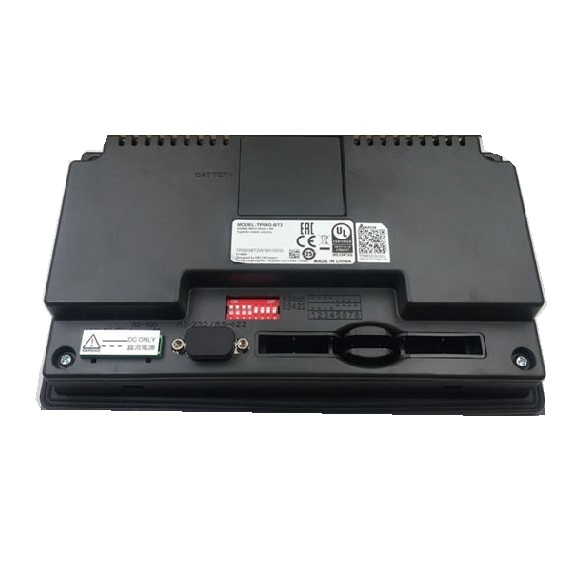

Delta TP08G-BT2 Series Text Panel HMI

Series#: Delta

Product Details

The DELTA TEXT PANEL HMI TP08G-BT2 Series delivers a robust 8-inch touchscreen interface for advanced industrial automation and machine control.
Supports Ethernet, serial (RS-232/RS-485), and USB connectivity for seamless integration with PLCs, drives, and sensors.
High-resolution 800x600 pixel display with LED backlight for clear visibility in harsh industrial environments.
Built-in data logging, recipe management, and alarm handling for enhanced process monitoring and troubleshooting.
IP65-rated front panel protection against dust and water jets, ideal for factory floor or outdoor applications.
Easy-to-use programming software with drag-and-drop interface, reducing engineering time and cost.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The DELTA TEXT PANEL HMI TP08G-BT2 Series is a high-performance human-machine interface designed for demanding industrial automation tasks, offering a perfect balance of reliability, connectivity, and user-friendly operation. This 8-inch touchscreen panel integrates seamlessly with Delta’s ecosystem and third-party devices, providing real-time data visualization, control, and diagnostics. With its robust construction and comprehensive communication ports, the TP08G-BT2 is ideal for applications in packaging, material handling, HVAC, and machine tool industries.

Parameter	Specification
Model Series	DELTA TEXT PANEL HMI TP08G-BT2 Series
Display Type	8-inch TFT LCD, LED backlight
Resolution	800 x 600 pixels (SVGA)
Touch Screen	Analog resistive, 4-wire
Brightness	400 cd/m² (typical)
Contrast Ratio	500:1 (typical)
Backlight Life	30,000 hours (minimum)
Processor	32-bit RISC CPU, 400 MHz
Memory	128 MB Flash, 64 MB DDR SDRAM
Communication Ports	1 x Ethernet (10/100 Base-T), 2 x RS-232/RS-485 (selectable), 1 x USB Host (Type A), 1 x USB Device (Mini-B)
Supported Protocols	Modbus RTU/TCP, Ethernet/IP, PROFINET, Delta DVP, Siemens S7, Allen-Bradley DF1, Omron Host Link, Mitsubishi FX/MELSEC
Programming Software	Delta DOPSoft (free download, supports IEC 61131-3 ladder logic and HMI design)
Data Storage	Internal Flash, supports SD card (optional, up to 32 GB)
Real-Time Clock	Yes, battery-backed
Alarm Handling	Up to 1024 alarms, with history log and event-driven actions
Recipe Management	Up to 256 recipes, each with 512 parameters
Operating Voltage	24 VDC (20.4 to 28.8 VDC), < 12 W power consumption
Protection Rating	Front panel: IP65 (NEMA 4X); Rear: IP20
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Humidity	10% to 90% RH (non-condensing)
Vibration Resistance	5 to 9 Hz: 3.5 mm amplitude; 9 to 150 Hz: 1.0 G
Dimensions (W x H x D)	230 x 180 x 45 mm (9.06 x 7.09 x 1.77 inches)
Panel Cutout	215 x 165 mm (8.46 x 6.50 inches)
Weight	1.2 kg (2.65 lbs)
Certifications	CE, UL, FCC, RoHS
Accessories Included	Power connector, USB cable, mounting clips, quick start guide
