Delta TP04G-BL-C Series Text Panel HMI

Series#: Delta

Product Details

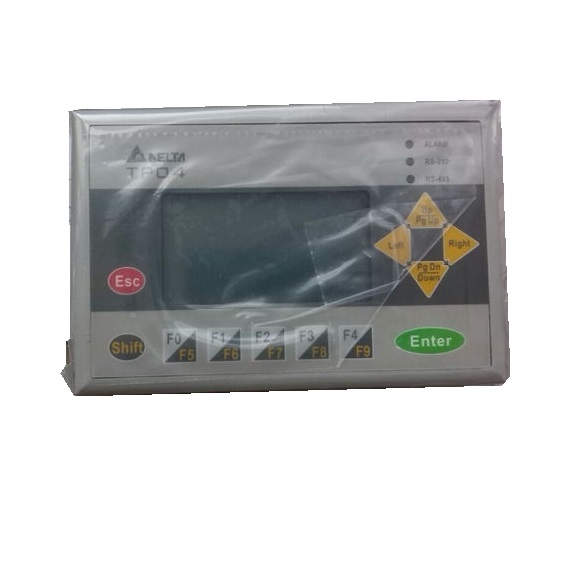

High-performance 4.3-inch monochrome HMI with a bright blue STN LCD display, ideal for industrial monitoring and control.
Model: DELTA TEXT PANEL HMI TP04G-BL-C SERIES – compact design for space-constrained applications.
Supports RS-232/RS-485 dual serial communication for seamless integration with PLCs and controllers.
IP65 front panel protection for reliable operation in harsh factory environments.
Easy-to-use programming via Delta’s free software (DOPSoft or TP Editor) with 8 function keys and 4 LEDs.
Wide operating temperature range (-10°C to +50°C) and low power consumption (under 5W).
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The DELTA TEXT PANEL HMI TP04G-BL-C SERIES is a robust operator interface designed for simple yet effective machine control in industrial automation. Engineered for reliability, this monochrome HMI features a 4.3-inch blue STN LCD with a resolution of 480x272 pixels, providing clear readability even in low-light conditions. It is equipped with dual serial communication ports (RS-232 and RS-485) to connect with a wide range of Delta PLCs and third-party controllers, making it a versatile choice for OEMs and system integrators. The unit is built to withstand dusty and humid environments, with an IP65-rated front panel and a compact cutout size of 92mm x 92mm. With a 32-bit RISC processor and 128KB of flash memory, it delivers responsive performance for text-based HMI applications, including alarms, data entry, and status monitoring. The TP04G-BL-C series also supports macro commands and recipes, enhancing its utility in batch processes.

Parameter	Specification
Display Type	Monochrome STN LCD, Blue background
Screen Size	4.3 inches (diagonal)
Resolution	480 x 272 pixels
Backlight	LED, replaceable
Processor	32-bit RISC, 200 MHz
Memory	128 KB Flash (user program), 32 KB SRAM
Communication Ports	1 x RS-232 (DB9), 1 x RS-485 (terminal block)
Protocol Support	Delta PLC Link, Modbus RTU/ASCII, Allen-Bradley DF1, Siemens PPI
Function Keys	8 membrane keys (customizable), 4 status LEDs
Power Supply	24 VDC ±10%, 0.2 A max
Power Consumption	4.8 W max
Operating Temperature	-10°C to +50°C (14°F to 122°F)
Storage Temperature	-20°C to +60°C (-4°F to 140°F)
Humidity	10% to 90% RH (non-condensing)
Protection Rating	IP65 (front panel), IP20 (rear enclosure)
Dimensions (W x H x D)	110 mm x 110 mm x 28 mm (4.33" x 4.33" x 1.10")
Cutout Size	92 mm x 92 mm (3.62" x 3.62")
Weight	Approx. 250 g (0.55 lbs)
Certifications	CE, UL, RoHS
