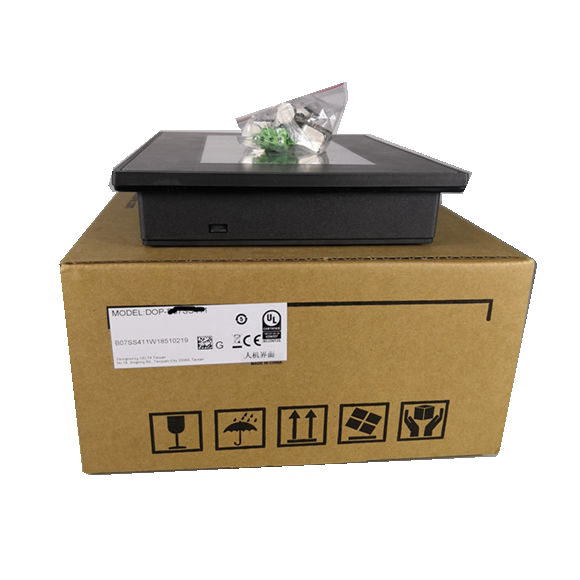

The DELTA HMI DOP-W105B is a state-of-the-art 10.1-inch widescreen touch panel designed for demanding industrial control applications. This model combines a high-resolution display with a powerful ARM Cortex-A8 processor, ensuring smooth operation and fast response times. It supports a wide range of industrial protocols, making it an ideal choice for PLC, inverter, and motion controller integration. With its ruggedized construction and IP65-rated front panel, the DOP-W105B delivers reliable performance in dusty, wet, or temperature-extreme environments.
| Parameter |
Specification |
| Model |
DELTA HMI DOP-W105B |
| Display Size |
10.1 inches (widescreen) |
| Display Resolution |
1024 x 600 pixels |
| Display Type |
TFT LCD with LED backlight |
| Brightness |
400 cd/m² (typical) |
| Backlight Life |
30,000 hours (typical) |
| Touch Panel |
Analog resistive, 4-wire |
| Processor |
ARM Cortex-A8, 1 GHz |
| Memory (Flash/RAM) |
256 MB Flash / 256 MB DDR3 RAM |
| Serial Ports |
1 x RS-232 (COM1), 1 x RS-422/485 (COM2) |
| Ethernet Ports |
1 x 10/100 Base-T (RJ45) |
| USB Ports |
1 x USB 2.0 Host (Type A), 1 x USB 2.0 Device (Mini-B) |
| SD Card Slot |
1 x SD/SDHC card slot (up to 32 GB) |
| Communication Protocols |
Modbus RTU, Modbus TCP, CANopen, Ethernet/IP, Delta DVP, Allen-Bradley DF1, Siemens S7, Mitsubishi FX, Omron Host Link, and more |
| Software |
Delta DOPSoft (HMI programming software), supports macro scripting, alarm, data logging, and recipe management |
| Front Panel Protection |
IP65 (NEMA 4 equivalent) |
| Operating Temperature |
-10°C to +60°C (14°F to 140°F) |
| Storage Temperature |
-20°C to +70°C (-4°F to 158°F) |
| Relative Humidity |
10% to 90% (non-condensing) |
| Power Supply |
24 VDC ±10% (isolated) |
| Power Consumption |
12 W (typical) |
| Dimensions (W x H x D) |
273.0 x 191.0 x 38.0 mm |
| Panel Cutout Dimensions |
260.0 x 178.0 mm |
| Weight |
Approx. 1.2 kg |
| Certifications |
CE, UL, FCC, RoHS |
