Delta DOP-B10E515 Touch Screen HMI

Series#: Delta

Product Details

10.4 INCH DELTA TOUCH SCREEN HMI DOP-B10E515 – High-performance industrial human-machine interface for automation systems.

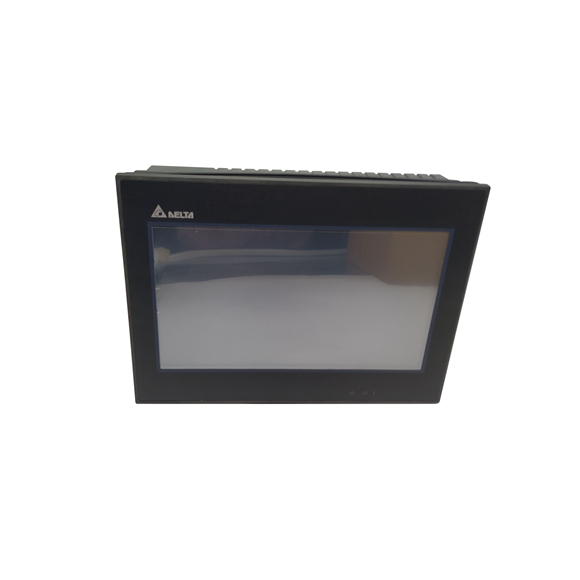

Wide-format 10.4-inch TFT LCD display with 800 x 600 resolution for clear, vibrant visuals.

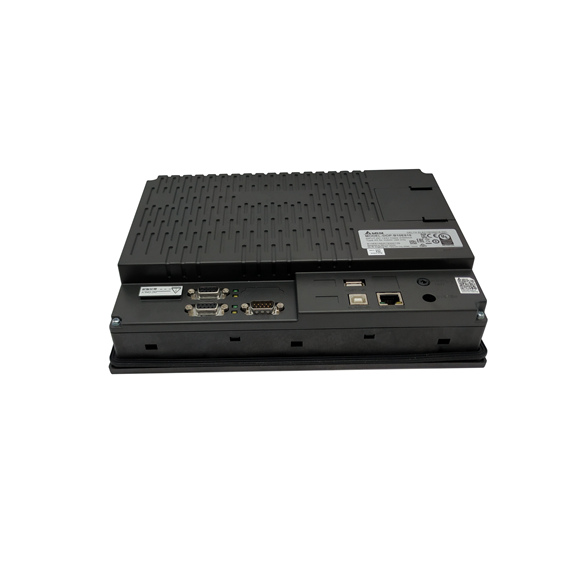

Built-in Ethernet, USB Host/Device, and RS-232/485/422 communication ports for versatile connectivity.
Supports multiple PLC brands and protocols, including Delta, Siemens, Mitsubishi, and Modbus.
Rugged industrial design with IP65 front panel protection for harsh environments.
Easy programming via Delta’s DOPSoft software with rich graphic and animation tools.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The 10.4 INCH DELTA TOUCH SCREEN HMI DOP-B10E515 is a robust and versatile operator interface designed for demanding industrial automation applications. This model features a high-brightness 10.4-inch TFT LCD display with a resolution of 800 x 600 pixels, providing crisp text and detailed graphics for process monitoring and control. It integrates multiple communication interfaces, including Ethernet, USB, and serial ports (RS-232/485/422), enabling seamless connection to a wide range of PLCs, drives, and other field devices. The HMI supports multi-language functionality and is programmed using the intuitive DOPSoft software suite, which offers extensive libraries of objects, alarms, and data logging features. Built with an IP65-rated front bezel, it withstands dust, moisture, and vibration in factory floor environments. Below is the detailed technical specification table for the DOP-B10E515 model.

Parameter	Specification
Display Type	10.4-inch TFT LCD (Color)
Resolution	800 x 600 pixels (SVGA)
Brightness	400 cd/m² (typical)
Contrast Ratio	500:1 (typical)
Backlight Life	30,000 hours (LED backlight)
Touch Screen	Analog resistive (4-wire)
Processor	32-bit RISC CPU (ARM-based)
Flash Memory	128 MB (user available)
RAM	64 MB (SDRAM)
Ethernet Port	1 x 10/100 Base-T (RJ-45)
USB Ports	1 x USB Host (Type A) + 1 x USB Device (Mini-B)
Serial Ports	1 x RS-232 (COM1) + 1 x RS-485/422 (COM2)
Supported Protocols	Delta, Siemens S7, Mitsubishi FX, Modbus RTU/TCP, Omron, Allen-Bradley, and more
Power Supply	24 VDC ±10% (typical consumption 12W)
Protection Rating	IP65 (front panel only)
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity	10% to 90% RH (non-condensing)
Dimensions (W x H x D)	Approx. 310 x 230 x 50 mm
Panel Cutout	Approx. 298 x 218 mm
Weight	Approx. 1.5 kg
Certifications	CE, UL, RoHS
Programming Software	DOPSoft (latest version recommended)
