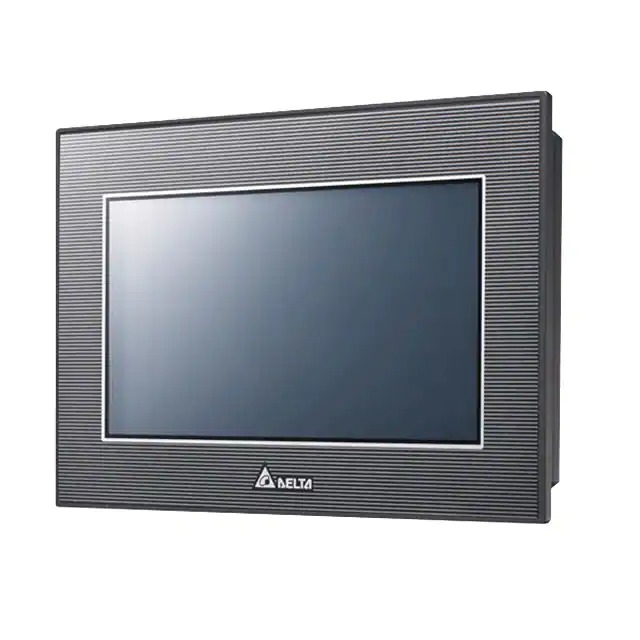

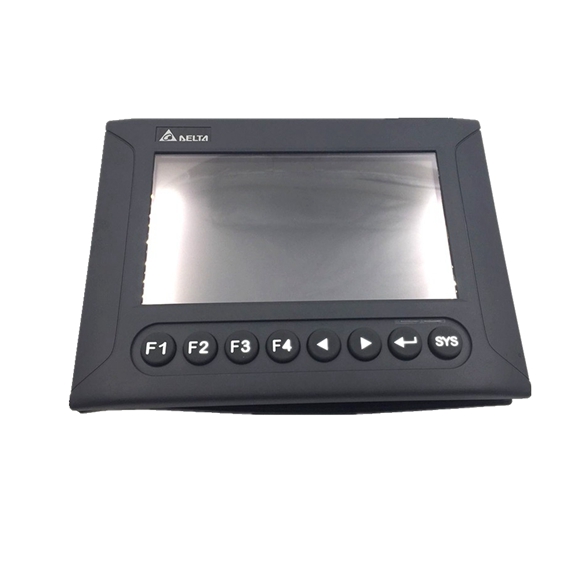

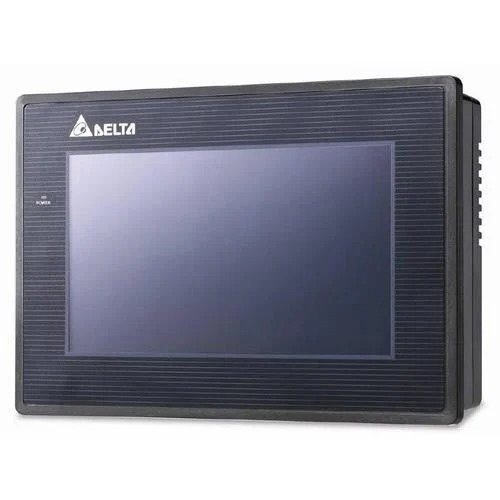

Delta DOP-B03E211 Touch Screen HMI

Series#: Delta

Product Details

5.6" INCH DELTA TOUCH SCREEN HMI DOP-B03E211 – a compact and reliable human-machine interface for industrial automation.
Features a vivid 5.6-inch TFT LCD display with 256 colors, offering clear visualization for process monitoring and control.
Supports multiple communication protocols including RS-232, RS-485, and USB for flexible connectivity with PLCs and controllers.
Equipped with an ARM-based processor for fast response times and smooth operation in demanding environments.
Designed with a robust IP65 front panel, resistant to dust and water splashes for harsh industrial settings.
Backed by a comprehensive 2-year warranty and free technical support for seamless integration.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Delta DOP-B03E211 is a high-performance 5.6-inch touch screen HMI engineered for precision control and real-time data visualization in factory automation systems. This model integrates seamlessly with Delta PLCs and third-party controllers via standard communication interfaces, making it an ideal choice for machine builders and system integrators. Its compact design, coupled with a resistive touch panel, ensures reliable operation even in environments with gloves or minor contamination. The DOP-B03E211 supports easy programming via Delta’s Screen Editor software, allowing users to create intuitive interfaces for process monitoring, alarm management, and data logging.

Specification	Details
Display Size	5.6 inches diagonal (TFT LCD)
Resolution	320 x 240 pixels (QVGA)
Display Colors	256 colors
Backlight Type	LED, with adjustable brightness (approx. 30,000 hours lifetime)
Touch Panel	Resistive analog touch, 4-wire, with 1 million touches minimum
Processor	ARM-based 32-bit RISC, 400 MHz
Memory	128 MB Flash ROM, 64 MB DDR SDRAM

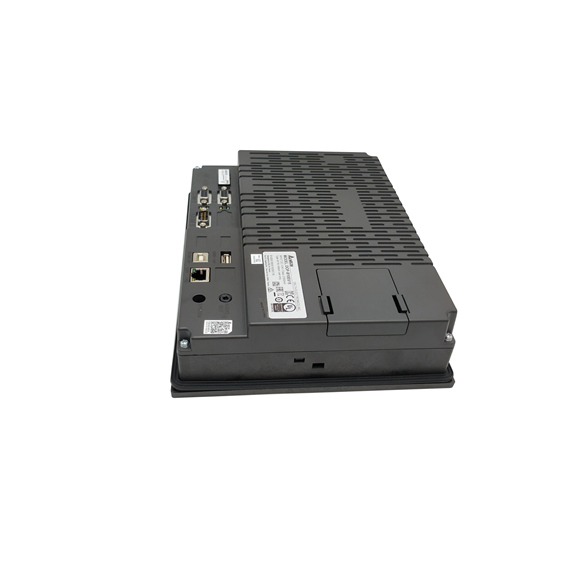

Communication Ports	1 x RS-232 (DB9), 1 x RS-485 (DB9), 1 x USB 2.0 (Type B for programming)
Ethernet Port	Not available on this model (Standard Models use RS-485/RS-232 only)
Protocol Support	Delta DVP, Modbus RTU/ASCII, Mitsubishi FX, Siemens S7-200, Omron Host Link, and others via driver library
Power Supply	24 VDC ±10%, 0.3 A max
Power Consumption	7.2 W typical
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity	10% to 90% RH (non-condensing)
Protection Rating	IP65 (front panel only, when installed in panel)
Dimensions (W x H x D)	184.0 mm x 144.0 mm x 43.0 mm (without connectors)
Panel Cutout	172.0 mm x 132.0 mm (recommended)
Weight	Approx. 0.5 kg (1.1 lbs)
Software	Delta Screen Editor (free download), supports offline simulation and project upload
Certifications	CE, UL, RoHS compliant
Warranty	2 years from date of purchase
