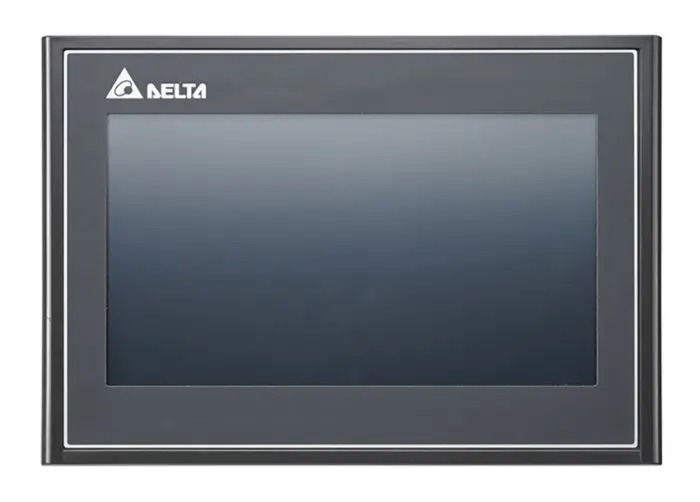

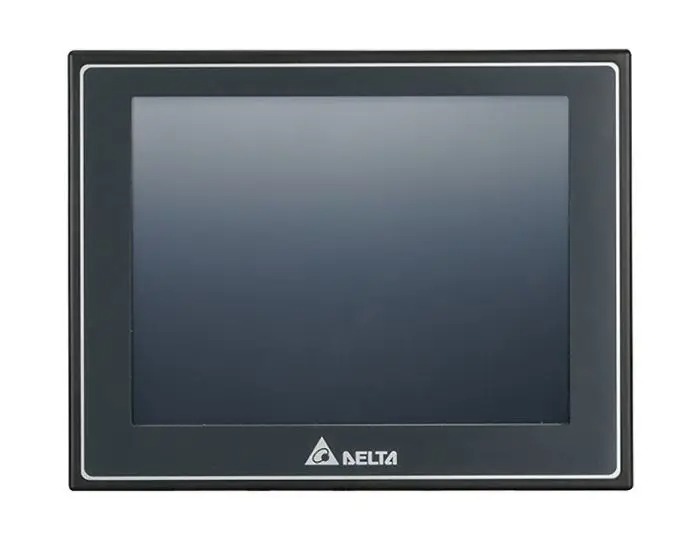

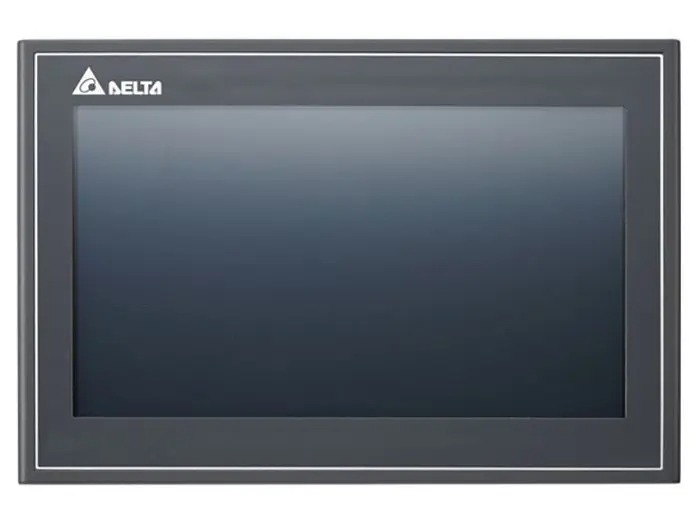

Delta DOP103BQ Touch Screen HMI

Series#: Delta

Product Details

DOP103BQ – Delta’s 4.3″ Programmable Touch Screen HMI for precise operator control and real-time industrial monitoring.
Compact panel-mount design with high-resolution 480×272 TFT LCD display for clear visualization in demanding factory environments.
Supports multiple communication protocols (RS-232, RS-485, USB) for seamless integration with PLCs, drives, and sensors.
Built-in 128 MB flash memory and 64 MB RAM for robust data logging, recipe management, and screen storage.
IP65-rated front panel protection against dust and water splashes, ensuring reliable operation in harsh industrial settings.
Easy-to-use DOPSoft software for intuitive HMI programming with rich graphic libraries and multi-language support.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The Delta DOP103BQ programmable touch screen HMI is a compact yet powerful operator panel designed for modern industrial automation. With a 4.3″ TFT LCD display offering 480×272 resolution, this HMI delivers crisp visuals and responsive touch control for monitoring and controlling machinery. The DOP103BQ supports diverse communication interfaces including RS-232, RS-485 (2-wire and 4-wire), and USB host/device ports, allowing easy connectivity to Delta PLCs, AC drives, temperature controllers, and third-party devices. Its 128 MB flash memory and 64 MB SDRAM provide ample space for complex projects, while the IP65 front panel ensures durability in wet or dusty environments. The DOP103BQ is ideal for applications such as packaging, material handling, HVAC, and process control, where reliable operator interface and fast data exchange are critical. Below is the detailed technical specification table for the DOP103BQ model:

Parameter	Specification (DOP103BQ)
Display Type	4.3″ TFT LCD (65536 colors)
Resolution	480 × 272 pixels
Backlight	LED, 50,000 hours typical life
Touch Panel	Analog resistive (4-wire), 1 million touches
Processor	32-bit RISC (ARM-based)
Flash Memory	128 MB
SDRAM	64 MB
Communication Ports	1 x RS-232 (DB9), 1 x RS-485 (2-wire/4-wire via terminal block), 1 x USB Host (Type A), 1 x USB Device (Mini-B)
Ethernet	Not available on DOP103BQ (use DOP107 series for Ethernet models)
Protocol Support	Delta DVP, Modbus RTU/ASCII, Mitsubishi FX, Siemens S7-200, Omron Host Link, Allen-Bradley DF1, and more
Real-Time Clock	Yes (with battery backup)
Data Logging	Yes (CSV format, up to 16 MB)
Recipe Storage	Yes (up to 256 recipes)
Programming Software	DOPSoft (Windows-based, free download)
Screen Protection	IP65 (front panel only), IP20 (rear enclosure)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Humidity	10% to 90% RH (non-condensing)
Vibration Resistance	10 to 25 Hz (2G), 25 to 100 Hz (1G) per IEC 60068-2-6
Power Supply	24 VDC ±10% (typical consumption 4.5 W)
Weight	Approx. 0.3 kg
Dimensions (W × H × D)	128 × 102 × 39 mm (panel cutout: 119 × 93 mm)
Certifications	CE, UL, RoHS
