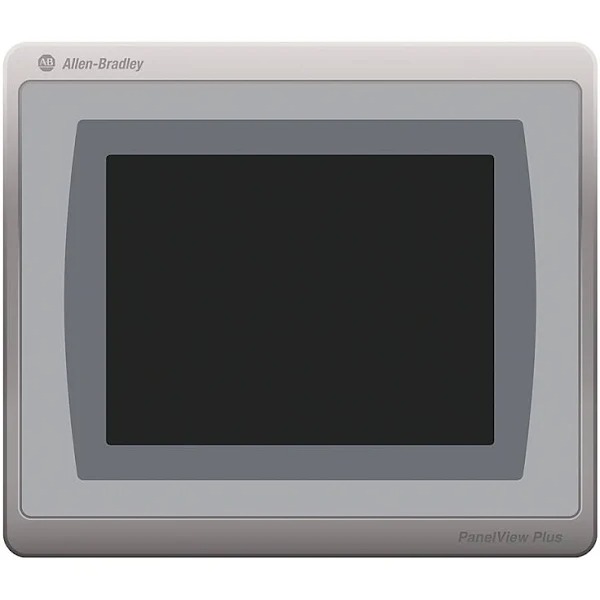

Allen-Bradley 2711P-T15C21D8S PanelView Plus 7 Standard Terminal

Allen-Bradley 2711P-T15C21D8S PanelView Plus 7 Standard Terminal

Series#: AllenBradley

Product Details

2711P-T15C21D8S – Allen-Bradley PanelView Plus 7 Standard Terminal, 15-inch color touchscreen, designed for demanding industrial HMI applications.
High-resolution 15-inch TFT color display with 1024 x 768 pixel resolution and LED backlight for clear visibility in harsh environments.
Integrated Ethernet, USB, and serial communication ports for seamless connectivity to PLCs, drives, and networks.
Rugged industrial design with NEMA 4X/12/IP66-rated front panel, suitable for washdown and dusty factory floors.
Supports Rockwell Automation’s FactoryTalk View ME software for advanced visualization, alarming, and data logging.
Enhanced performance with 1 GHz processor and 512 MB RAM, ensuring smooth operation of complex screen graphics.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

WhatsApp Inquiry

Specification

Datasheet (PDF)

The Allen-Bradley 2711P-T15C21D8S PanelView Plus 7 Standard Terminal is a robust 15-inch touchscreen HMI engineered for real-time operator interface in automated manufacturing lines. This model delivers superior display clarity and fast response times, making it ideal for monitoring and controlling complex processes. With its IP66-rated front panel and wide power supply range, the 2711P-T15C21D8S can withstand extreme temperatures, vibration, and moisture, ensuring reliable operation in steel mills, food processing plants, and oil & gas facilities. The terminal supports multiple communication protocols including Ethernet/IP, ControlNet, and DeviceNet, enabling seamless integration with Allen-Bradley ControlLogix, CompactLogix, and MicroLogix controllers.

Parameter	Specification
Part Number	2711P-T15C21D8S
Product Family	PanelView Plus 7 Standard
Display Type	15-inch TFT Color Active Matrix
Resolution	1024 x 768 (XGA)
Backlight	LED, 50,000 hours typical life
Touch Screen Technology	Analog Resistive (single-touch)
Processor	1 GHz ARM Cortex-A8
System Memory (RAM)	512 MB DDR3 SDRAM
Non-Volatile Storage	512 MB Flash (expandable via SD card)
Operating System	Windows Embedded Compact 7
Communication Ports	1 x Ethernet (10/100 Base-T), 1 x USB Host (Type A), 1 x USB Device (Mini-B), 1 x RS-232/422/485 Serial
Network Protocols	EtherNet/IP, ControlNet, DeviceNet, DF1, DH+, Modbus TCP, OPC UA
Power Supply Input	24V DC (18-32V DC range), 15W max
Enclosure Rating	NEMA 4X/12 (indoor), IP66 (front panel)
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Relative Humidity	5% to 95% non-condensing
Vibration Resistance	2g Standard Models 10-500 Hz per IEC 60068-2-6
Shock Resistance	15g Standard Models 11 ms per IEC 60068-2-27
Dimensions (H x W x D)	Approx. 300 mm x 400 mm x 80 mm (11.8 x 15.7 x 3.15 inches)
Weight	Approx. 4.5 kg (9.9 lbs)
Certifications	CE, UL, cUL, ATEX (Zone 2/22), IECEx, RoHS
Software Compatibility	FactoryTalk View ME (v11.0 or later), RSLogix 5000/Studio 5000
