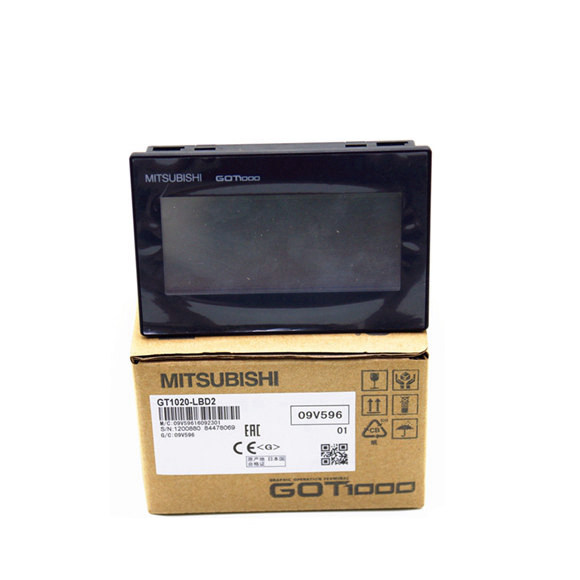

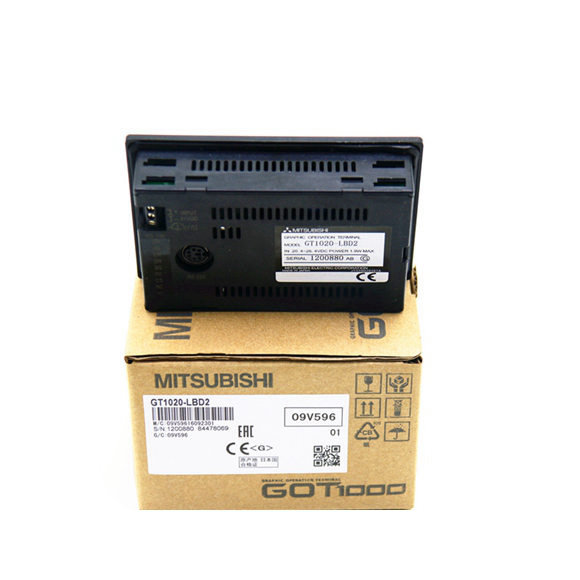

The Mitsubishi GT1020-LBD2/LWD2 is a 3.7-inch monochrome HMI touch screen designed for reliable operator interface in space-constrained automation systems. This unit features a crisp STN liquid crystal display with 160x64 dot resolution, enabling clear data visualization even in challenging lighting conditions. The LED backlight offers three selectable colors (white, red, pink) and is rated for approximately 50,000 hours of operation, eliminating the need for frequent replacements. Its analog resistive touch panel supports up to 50 programmable keys per screen, providing intuitive control for machine operators. With an IP67-equivalent front panel rating and compact dimensions (W113 x H74 x D27 mm), the GT1020-LBD2/LWD2 is ideal for panel-mount applications in manufacturing, packaging, and process control environments. RS-232 connectivity ensures seamless integration with Mitsubishi PLCs and third-party controllers via GT Designer2/3 software.
| Parameter |
Specification |
| Display Type |
STN monochrome (white/black) liquid crystal |
| Screen Size |
3.7 inches |
| Resolution |
160 x 64 dots (horizontal format) |
| Display Area |
W86.4 x H34.5 mm (W3.4 x H1.35 inches) |
| Display Characters |
20 characters x 4 lines (16-dot standard font, horizontal format) |
| Display Colors |
Monochrome (white/black) |
| Viewing Angle |
Left/Right: 30°, Top: 20°, Bottom: 30° (horizontal format) |
| Contrast Adjustment |
16-level adjustment |
| Backlight |
LED, 3 colors (white, red, pink), no replacement required; backlight status control (colors, ON/BLINK/OFF); screensaver activation time adjustable; PLC control via system information setting |
| LCD Intensity |
300 cd/m² (in white) |
| Backlight Life |
Approx. 50,000 hours (time for intensity to become 1/5 at 25°C ambient) |
| Touch Panel Type |
Analog resistive film |
| Touch Keys |
Maximum 50 keys per screen |
| Key Size |
Minimum 2 x 2 dots per key |
| Simultaneous Press |
Not supported (pressing two or more areas may activate switch between them) |
| Touch Panel Life |
1 million times or more (operating force 0.98N max.) |
| Memory (C Drive) |
Flash memory (internal), 512 Kbytes max for project data, OS, alarm history, recipe data, time action settings |
| Memory Write Life |
100,000 times |
| PC Communication |
RS-232 1ch; transmission speed: 115200/57600/38400/19200/9600/4800 bps; connector: MINI DIN 6-pin (female); application: project upload/download, OS installation, transparent function |
| Buzzer Output |
Single tone (LONG/SHORT/OFF adjustable) |
| Environmental Protection |
Equivalent to IP67 (JEM1030) front section (horizontal format) |
| External Dimensions |
W113 x H74 x D27 mm (W4.44 x H2.91 x D1.06 inches) |
| Panel Cutout Dimensions |
W105 x H66 mm (W4.13 x H2.59 inches) |
| Weight |
0.2 kg (excluding mounting fixtures) for GT1020-LBD2/LWD2 |
| Compatible Software |
GT Designer2 Version2.58L or later / GT Designer3 Version1.01B or later |
- Power Supply: 24 VDC (internal), typically consumes 4W or less; supports reverse polarity protection and surge suppression.
- Operating Temperature: 0°C to 50°C (32°F to 122°F) for reliable performance in typical factory environments.
- Storage Temperature: -20°C to 60°C (-4°F to 140°F) for safe handling during transport and storage.
- Humidity Range: 10% to 90% RH (non-condensing) to prevent moisture damage.
- Vibration Resistance: Complies with JIS B 3502, IEC 61131-2 (5 Hz to 9 Hz, 3.5 mm amplitude; 9 Hz to 150 Hz, 9.8 m/s² acceleration).
- Shock Resistance: Withstands up to 147 m/s² (15 G) for 11 ms half-sine pulse per IEC 60068-2-27.
- Noise Immunity: Designed to meet IEC 61000-4-4 level 2 (1 kV) for industrial EMC compliance.
- Mounting Method: Panel-mount via mounting fixtures included; requires panel cutout as specified.
- Warranty: Standard 12-month warranty against manufacturing defects; extended options available upon request.
